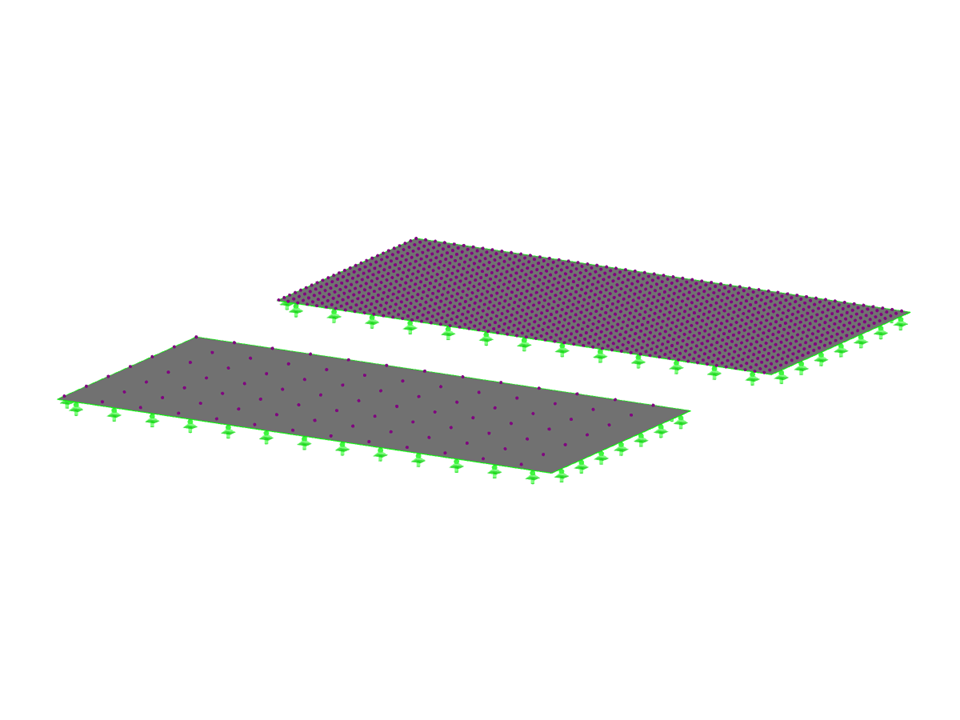

Slab with Result Grid
Model to Download
Description
This model demonstrates adjusting the display of result values for surfaces.
For relatively large or relatively small surfaces, it can happen that the automatically created result values do not fit the model: In the ‘Grid’ tab of the ‘Edit Surfaces’ dialog box, you can change this value.
Model Used in
Keywords
Grid point Result value Value displayed on surface
