This model was used to show the options for moving individual elements or entire chapters in the printout report.

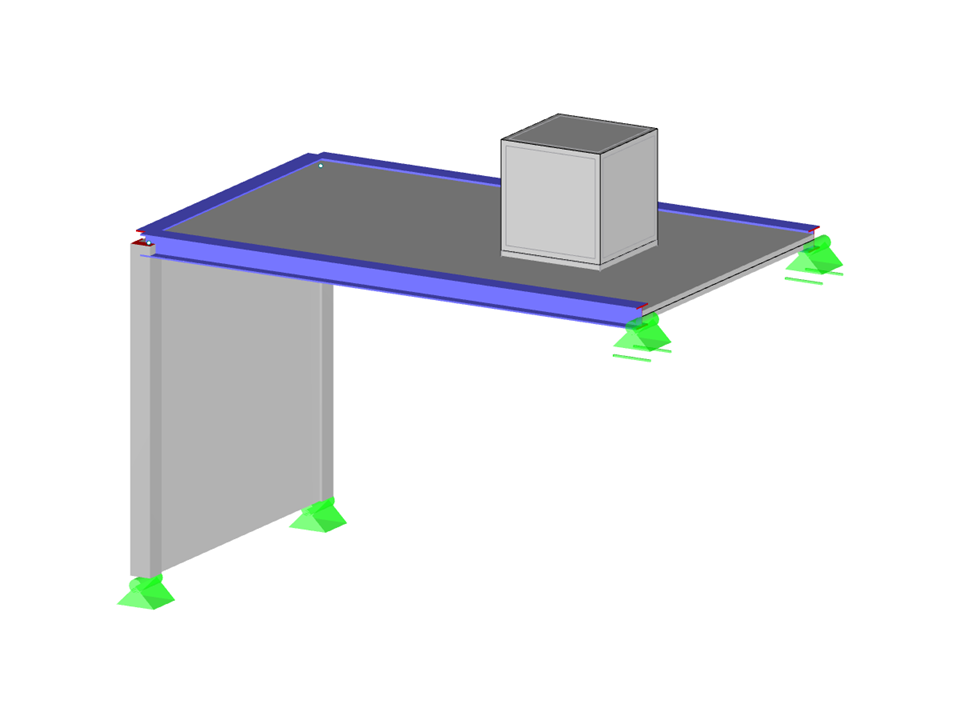

Combined Structure
| Number of Nodes | 20 |
| Number of Lines | 30 |
| Number of Members | 7 |
| Number of Surfaces | 14 |
| Number of Solids | 2 |
| Number of Load Cases | 1 |
| Total Weight | 11.272 tons |
| Dimensions (Metric) | 5.375 x 3.375 x 4.287 m |
| Dimensions (Imperial) | 17.63 x 11.07 x 14.06 feet |
| Program Version | 5.23.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
