This model was used to demonstrate the insertion of openings, holes, and drillings in solids.
Model Used in

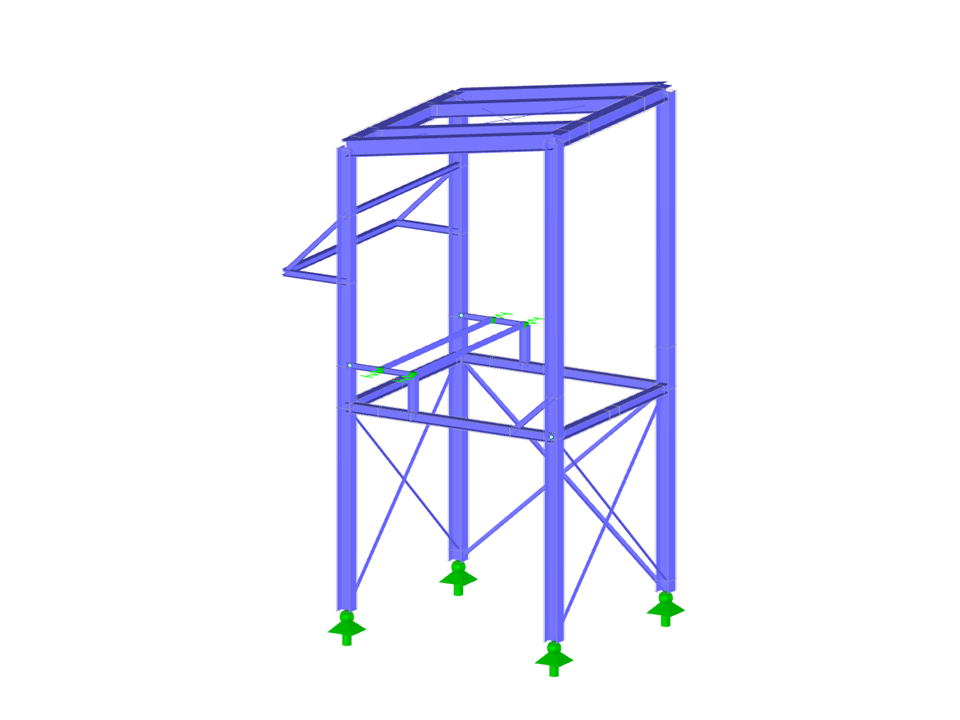

Steel Scaffolding
| Number of Nodes | 57 |
| Number of Lines | 79 |
| Number of Members | 79 |
| Number of Load Cases | 1 |
| Total Weight | 8.323 tons |
| Dimensions (Metric) | 6.800 x 5.262 x 11.110 m |
| Dimensions (Imperial) | 22.31 x 17.26 x 36.45 feet |
| Program Version | 5.23.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
