Question:
How do I consider holes in steel members?
Answer:
For the calculation of members, it is possible to define the cross-sections in RFEM and RSTAB that create a member with the openings arranged regularly (circular or honeycombed).

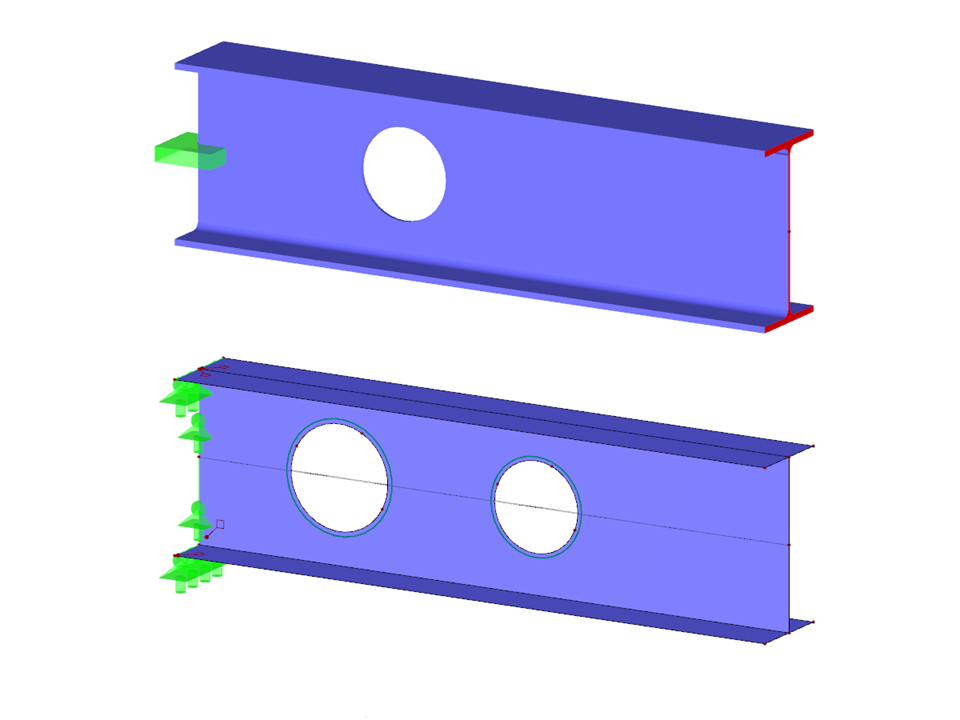

If you want to position a single opening in a steel beam, you can use the "Generate Surfaces from Member" function and then place the hole as a circular opening in the web surface.
Model Used in
Members with Holes
| Number of Nodes | 22 |
| Number of Lines | 20 |
| Number of Members | 2 |
| Number of Surfaces | 5 |
| Number of Load Cases | 1 |
| Total Weight | 0.594 tons |
| Dimensions (Metric) | 2.200 x 0.300 x 1.381 m |
| Dimensions (Imperial) | 7.22 x 0.98 x 4.53 feet |
| Program Version | 5.23.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
