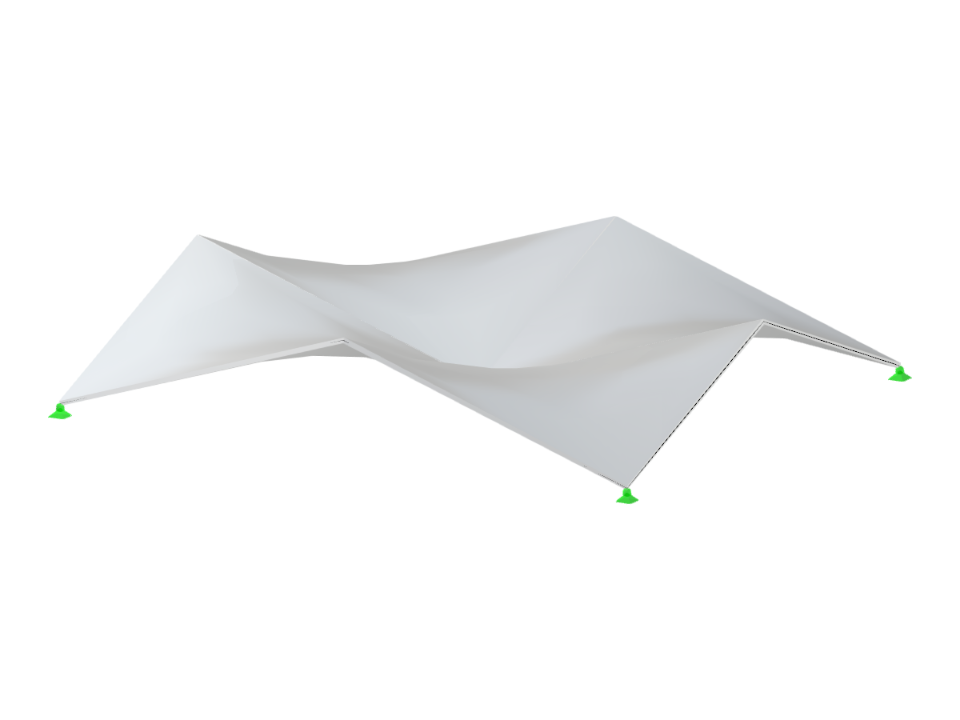

This model features anticlastic shells composed of four "hypar" surfaces arranged over a rectangular plan. All boundaries and folds are slanted, creating dynamic forms and structural efficiency. The design showcases complex geometries typically involved in architectural and structural engineering, allowing exploration of unique shaping techniques used in shell design.

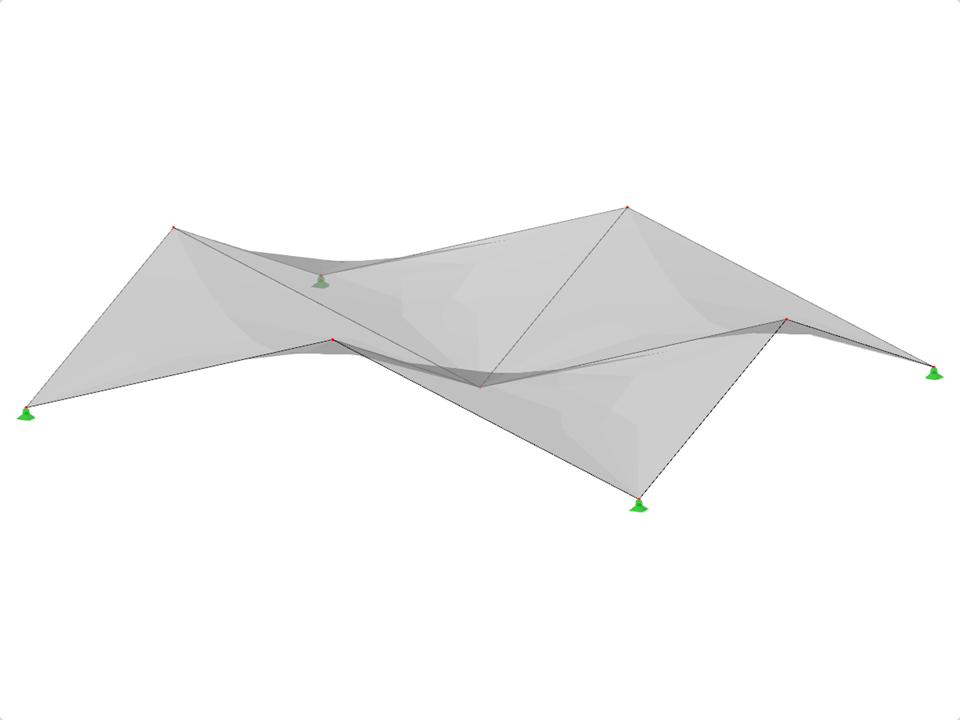

Anticlastic Shells with Hypar Surfaces
| Block parameters editable dynamically | |
| Number of Nodes | 9 |
| Number of Lines | 12 |
| Number of Members | 0 |
| Number of Surfaces | 4 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 31.315 tons |
| Dimensions (Metric) | 12.000 x 2.000 x 10.000 m |
| Dimensions (Imperial) | 39.37 x 6.56 x 32.81 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
