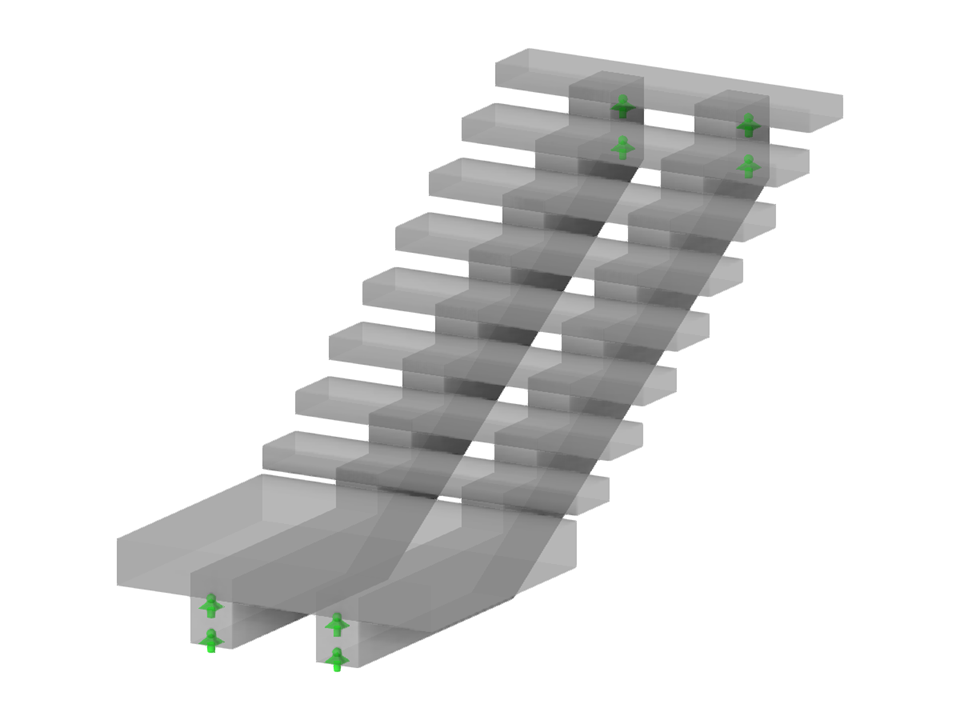

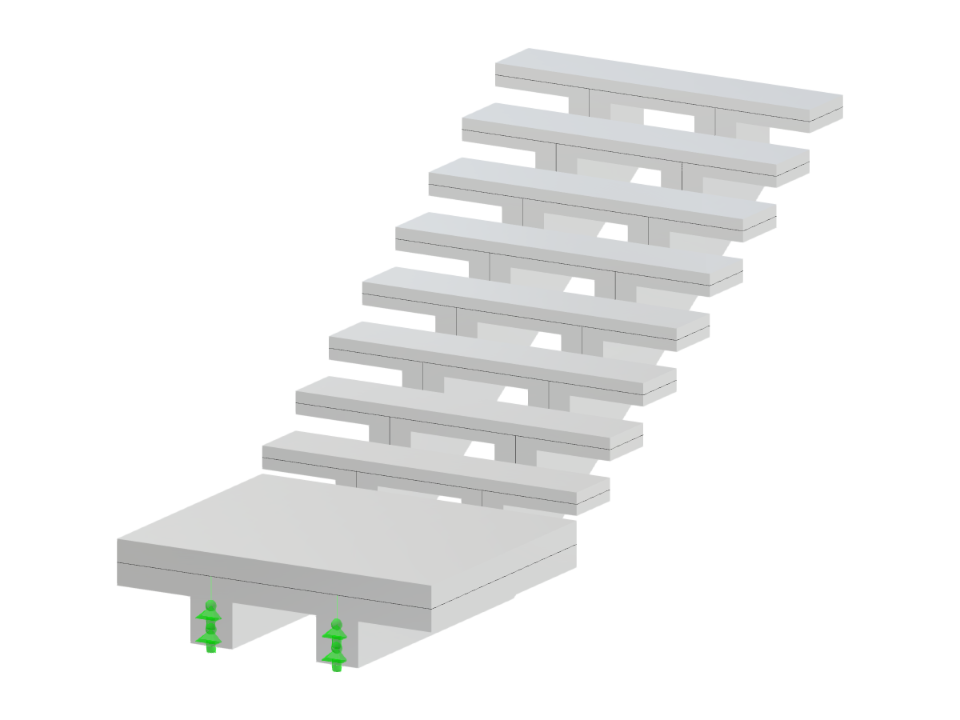

Concrete single-flight staircase supported by a twin spine beam with bottom landing. The spine beam runs underneath the treads of the staircase and is anchored to the surrounding structure, providing stability and support.
STC035 | Staircase with Twin Spine Beam and Bottom Landing
| Block parameters editable dynamically | |
| Number of Nodes | 78 |
| Number of Lines | 78 |
| Number of Members | 0 |
| Number of Surfaces | 11 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 3.046 tons |
| Dimensions (Metric) | 1,500 x 1,660 x 3,400 m |
| Dimensions (Imperial) | 4.92 x 5.45 x 11.15 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
