Steel to Wood Connection
Model to Download
Description

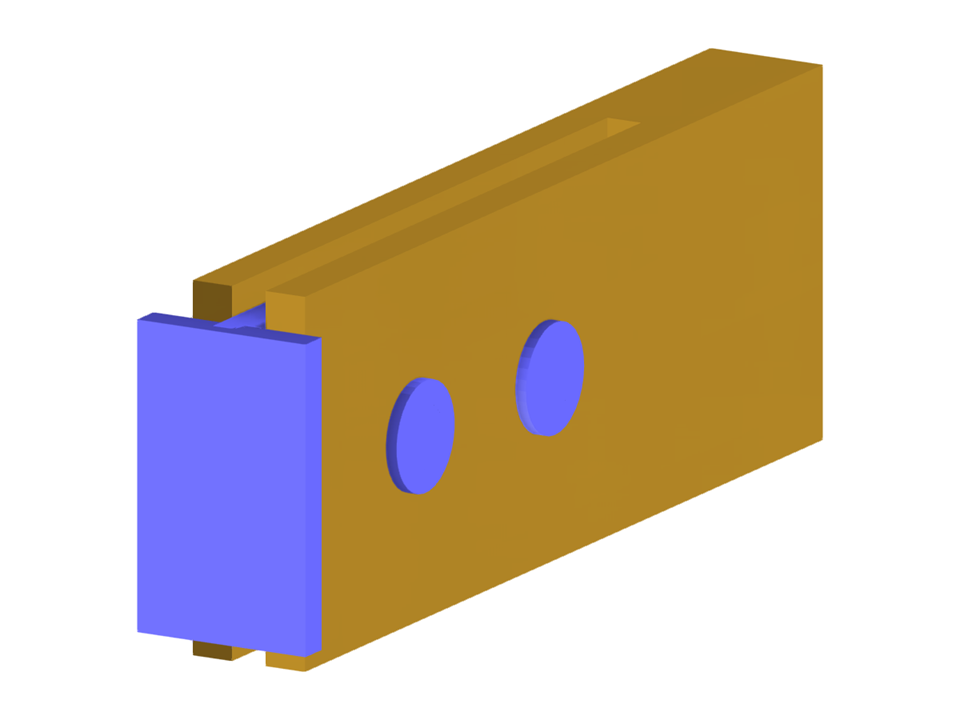

Parameterisation of the geometry of a connection of a wooden tie-rod to a metal plate, connected by steel bolts.
Model created by the technical team of Dlubal Latam. The model is also available as a parameterized block at the Dlubal Latam site.
The file to download contains a parametrized model saved as a block (*.rf6 file type).
Keywords
Write Comment...
Write Comment...
- Views 470x
- Downloads 18x
- Updated 2 August 2023
- Block parameters editable dynamically
- Number of Nodes 44
- Number of Lines 56
- Number of Members 4
- Number of Surfaces 27
- Number of Solids 1
- Number of Load Cases 1
- Number of Load Combinations 0
- Number of Result Combinations 0
- Total Weight 0,057 t
- Dimensions 0,830 x 0,300 x 0,150 m
