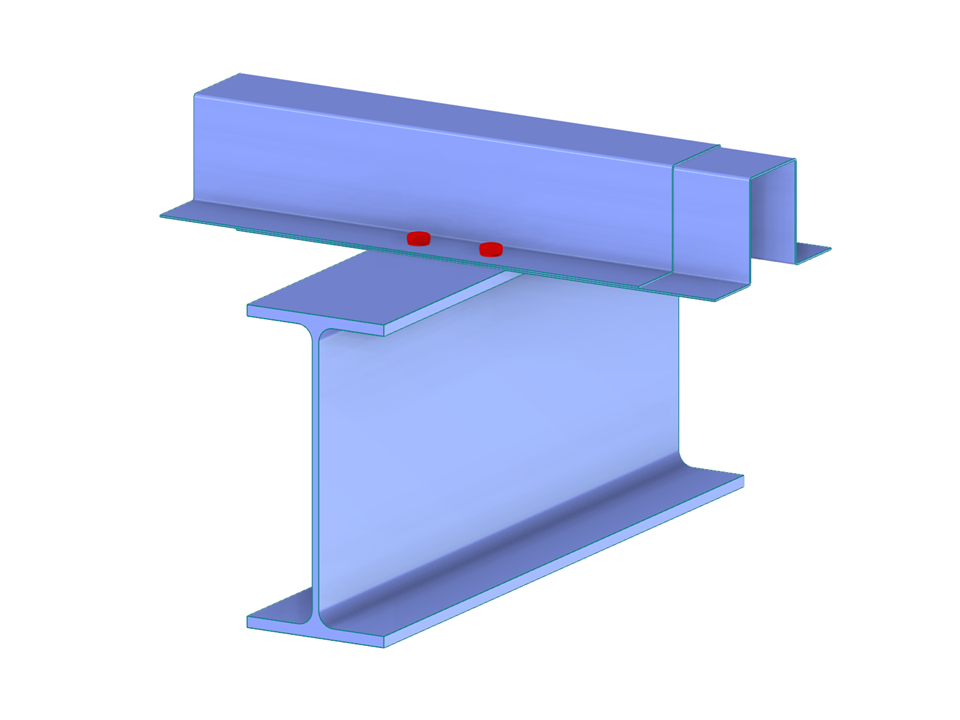

Continuous omega purlins connected to upper flange of the supporting beam. Another example of the use of Steel Joints for cold-formed sections.
Omega Purlin Connection
| Number of Nodes | 13 |
| Number of Lines | 12 |
| Number of Members | 12 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 0.490 tons |
| Dimensions | 19.69 x 0 x 19.69 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
