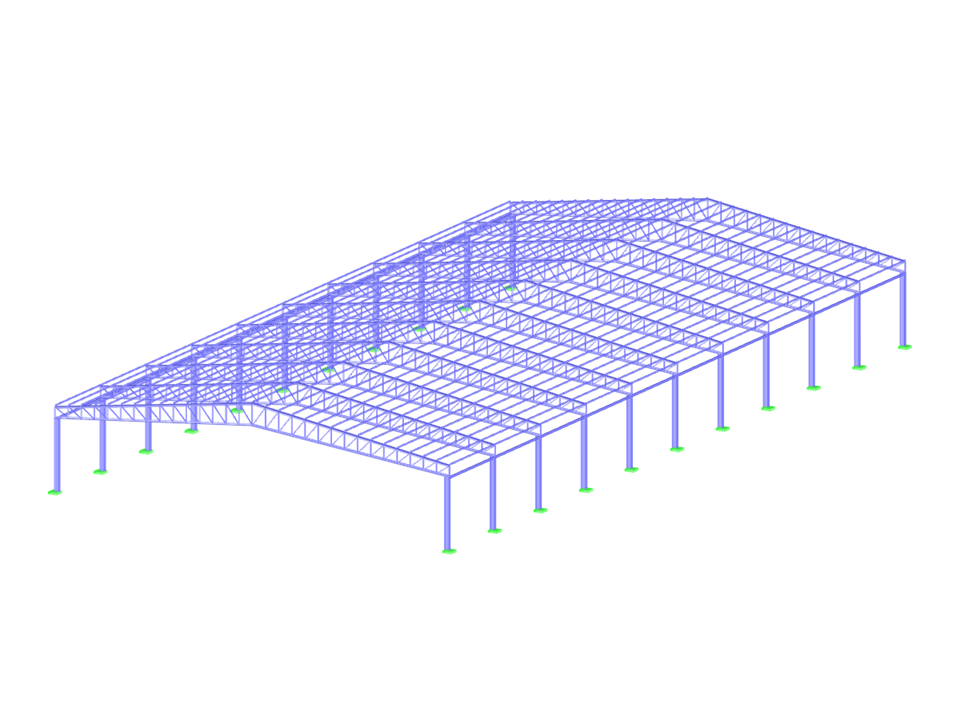

Parameterization of the geometry of a complete building with steel portal frames made up of lattice girders with a variable number of uprights and diagonals.
Model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Industrial Building
| Block parameters editable dynamically | |
| Number of Nodes | 704 |
| Number of Lines | 1067 |
| Number of Members | 1067 |
| Total Weight | 85.730 tons |
| Dimensions | 102.49 x 200.92 x 28.58 feet |
| Program Version | 5.29.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
