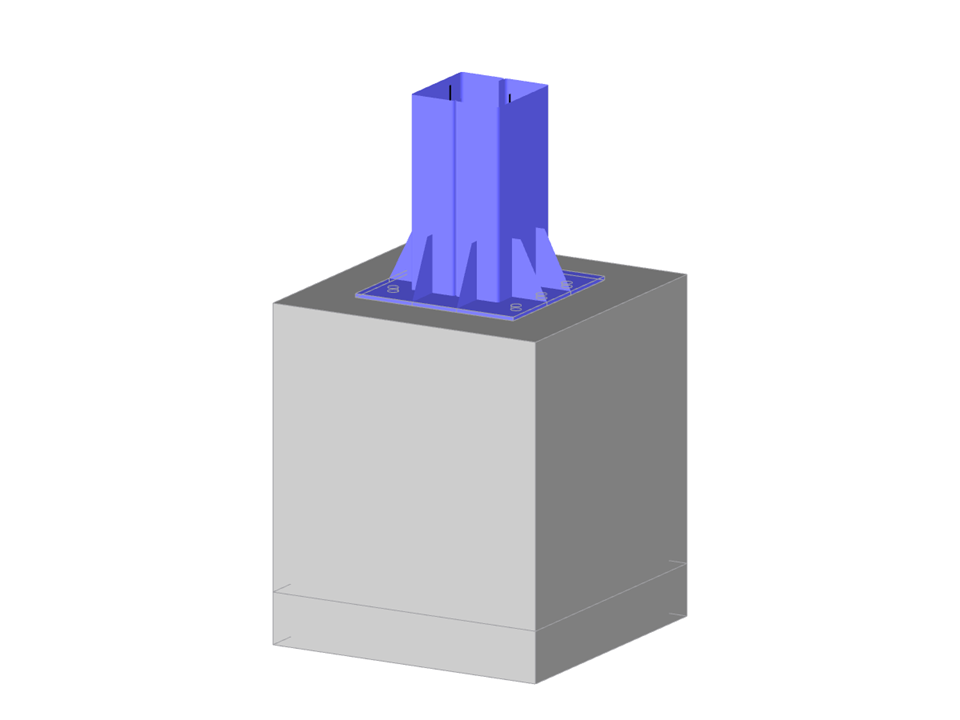

Parameterization of geometry of a double C-section column, connected to a base plate and stiffened by gussets, anchored to the foundation block by 6 anchor bolts.
Model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Column Base
| Block parameters editable dynamically | |
| Number of Nodes | 209 |
| Number of Lines | 222 |
| Number of Members | 10 |
| Number of Surfaces | 92 |
| Number of Solids | 3 |
| Total Weight | 0.076 tons |
| Dimensions | 0.98 x 0.98 x 1.86 feet |
| Program Version | 5.27.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
