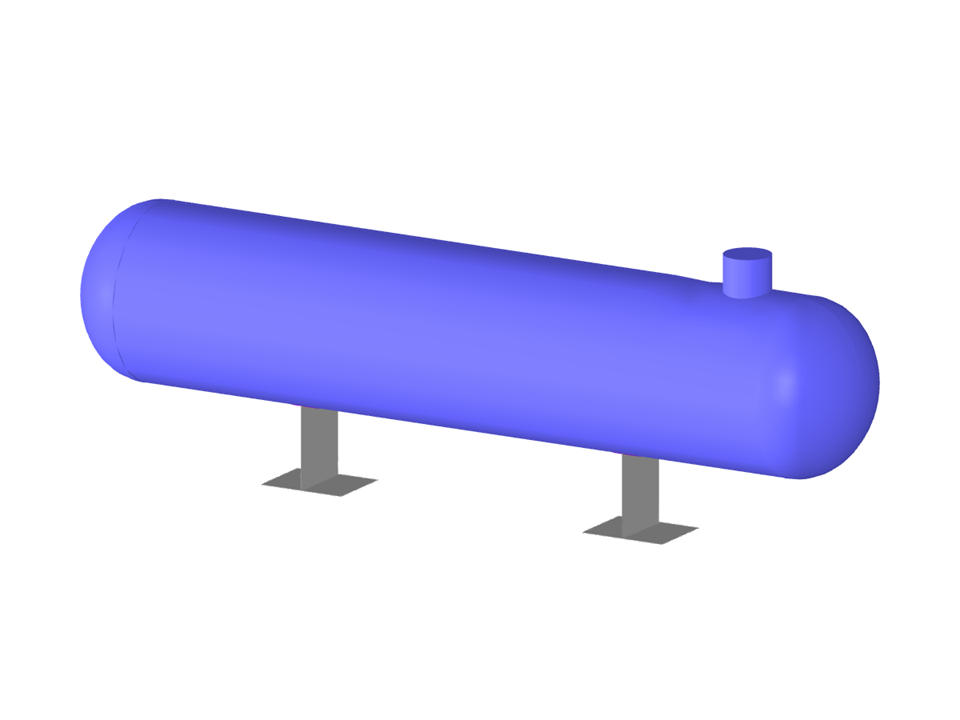

Parameterization of the geometry of a cylindrical steel pressure tank supported on two metal legs.
A model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Cylindrical Pressure Vessel
| Block parameters editable dynamically | |
| Number of Nodes | 66 |
| Number of Lines | 47 |
| Number of Surfaces | 17 |
| Number of Load Cases | 2 |
| Total Weight | 5.053 tons |
| Dimensions | 26.24 x 9.89 x 9.86 feet |
| Program Version | 5.19.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
