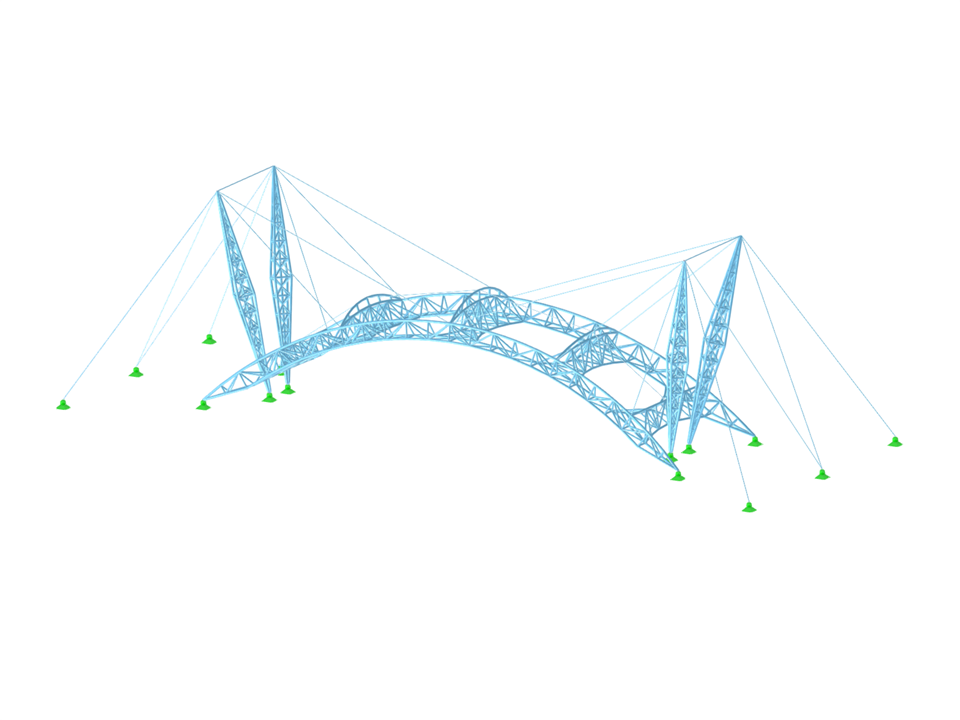

Dawang Toll Station in Shaanxi, China | © Jiangsu Jingong Space Structure Co., Ltd.
Dawang Toll Station in Shaanxi, China
No Download Possible
Customer Project / for View Only
| Number of Nodes | 724 |
| Number of Lines | 2158 |
| Number of Members | 1926 |
| Number of Surfaces | 136 |
| Number of Solids | 0 |
| Number of Load Cases | 9 |
| Number of Load Combinations | 68 |
| Number of Result Combinations | 0 |
| Total Weight | 197.899 tons |
| Dimensions | 574.15 x 171.18 x 198.82 feet |
