This model features a complex structural connection setup involving a column base with an I-profile, diagonal connection with flange plates, rib stiffeners, and a base plate. The design includes a gusset plate for additional support and anchoring mechanisms to ensure stability. Bolted diagonal connections are integrated into the column web to enhance load distribution.

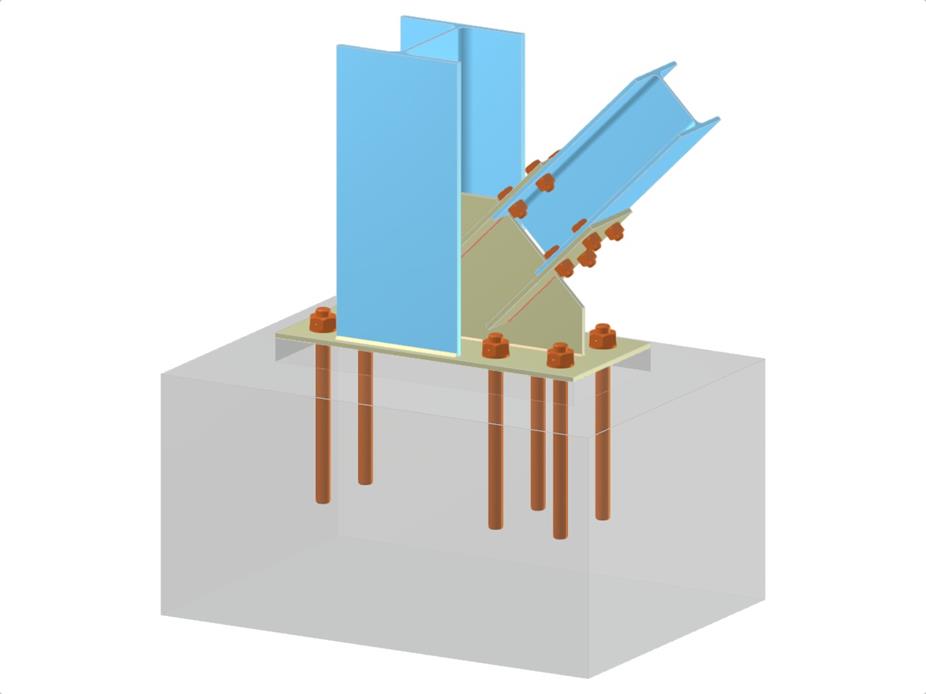

Column Base with Bolted Diagonal Connection
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.119 tons |
| Dimensions (Metric) | 1,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 3.28 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
