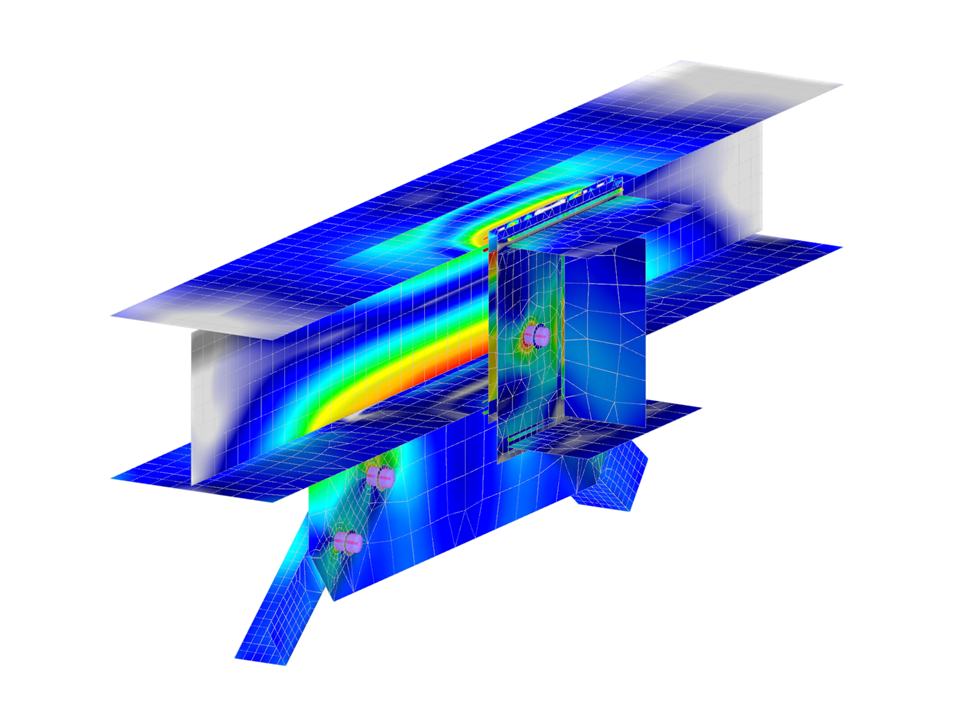

This model features a steel connection comprising a beam with a shifted endplate and a gusset incorporating L-shaped bracing. The model includes internal forces transferred from a steel tower structure, crucial for understanding the dynamics and load distribution. The key features are the I-beam and stiffeners, which ensure strength and stability. This model is exported for detailed analysis and engineering applications.
Steel Connection of Beam with Shifted Endplate and Gusset with L-Bracing
| Number of Nodes | 763 |
| Number of Lines | 604 |
| Number of Members | 408 |
| Number of Surfaces | 44 |
| Number of Solids | 0 |
| Number of Load Cases | 4 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.062 tons |
| Dimensions (Metric) | 0.290 x 0.397 x 1.095 m |
| Dimensions (Imperial) | 0.95 x 1.3 x 3.59 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
