Production Hall Hydro Aluminium, Grevenbroich, Germany

Customer Project

Customer Hydro Aluminium Rolled Products GmbH
www.hydro.com
General Contractor pbr Planungsbüro Rohling AG
www.pbr.de

Data of Production Hall (Partial Model)

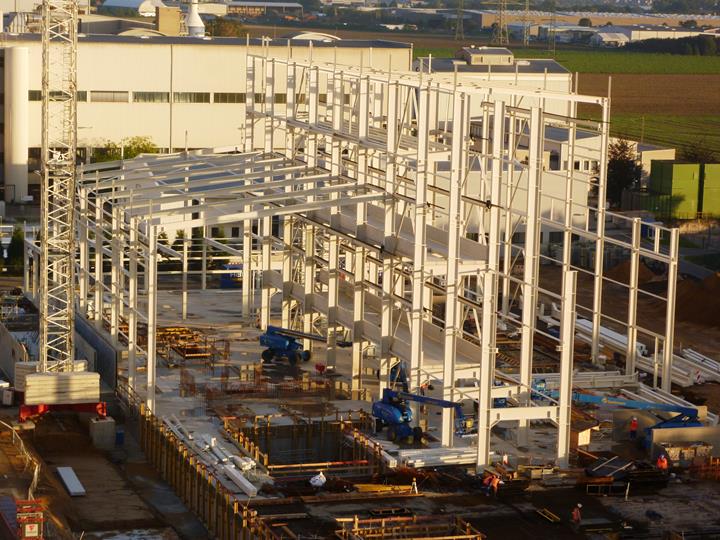

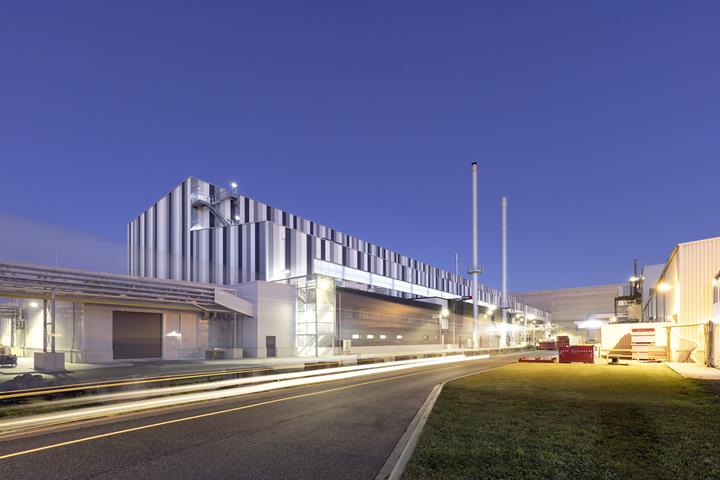

Within a short period of time, a modern aluminium structure with sophisticated building services was constructed for the company Hydro Aluminium in Grevenbroich.

The construction project on the premises near Düsseldorf covers approximately a length of 220 m and a width of 120 m. It includes various connecting bridges to the existing premises, a three-aisled production hall with outbuildings as well as a 100 m long and 30 m high high-rack warehouse which was constructed in slipform paving technology.

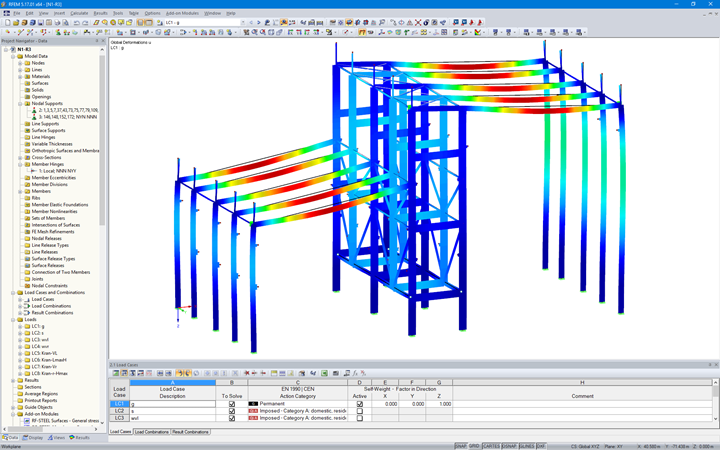

During this project, the Dlubal customer pbr from Osnabrück was as general contractor also in charge of the structural planning and used the FEA Software RFEM to design the production hall made of steel.

Structure

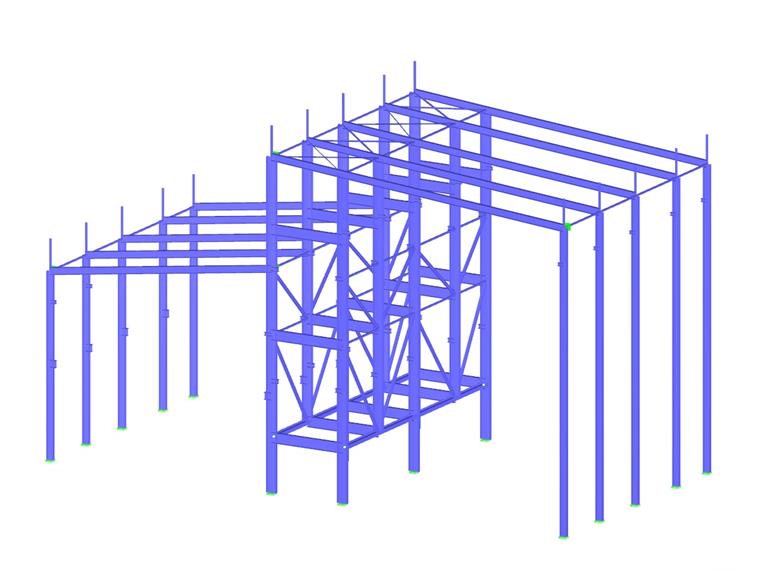

The outer dimensions of the production hall amount to L x W x H = approx. 44 m x 210 m x 28 m. The frame distances vary between 4.5 m and 6.0 m. All columns are fixed at the base.

The structure with steel grade S 235 was protected with a colour coating against corrosion. The wall covering of the hall consists of insulated cassette profiles and trapezoidal sheets. It is surrounded by a base made of reinforced concrete.
