University of Arkansas Library Annex, Fayetteville, AR USA
Designed to store nearly 2 million library volumes and works of art, the University of Arkansas Library Annex in Fayetteville was built with cross-laminated timber (CLT) roofs, walls and floors, and glulam beams, columns and moment frames.
University of Arkansas, USA
Perry Dean Rogers | Partners Architects, USA
|Architect of Record||
Miller Boskus Lack, USA
Robbins Engineering, USA
|Fabricator Consultant & Design Assistance||
|Awards||2019 WoodWorks Wood Products Council Wood in Schools|

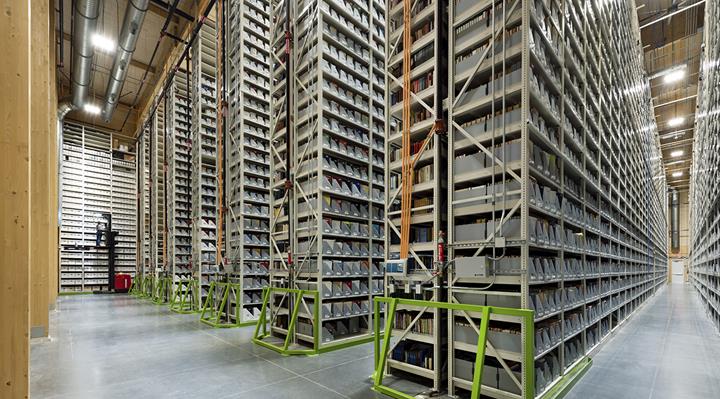

According to the project team, pre-fabrication of the CLT and glulam system helped speed construction and minimized jobsite waste, resulting in a cost-competitive replacement for the traditional steel and tilt-up concrete structure initially suggested by the client. Inside, the wood is left exposed, warming the space and brightening the room to create a comfortable work environment.

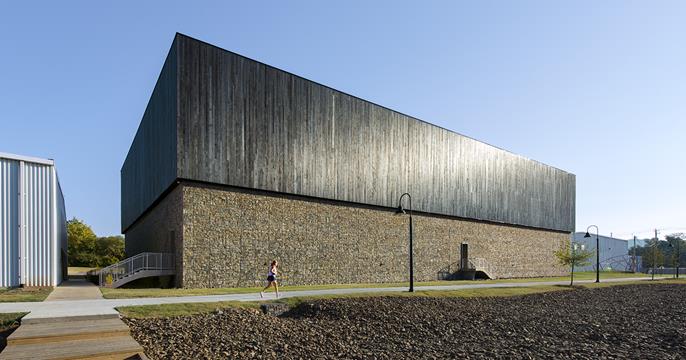

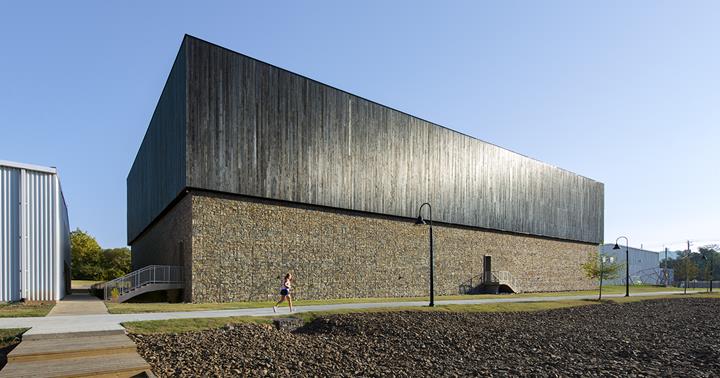

Since the area is prone to tornados, the team opted to clad the larger, high-density storage volume with a stone-filled gabion basket base wall to protect against low-flying projectiles, and a heavily charred wood upper shroud that can be easily repaired or replaced while providing a fire- and insect-resistant facade. With these and other design decisions, what could have been an ordinary warehouse storage facility is instead an attractive addition to the University’s campus.

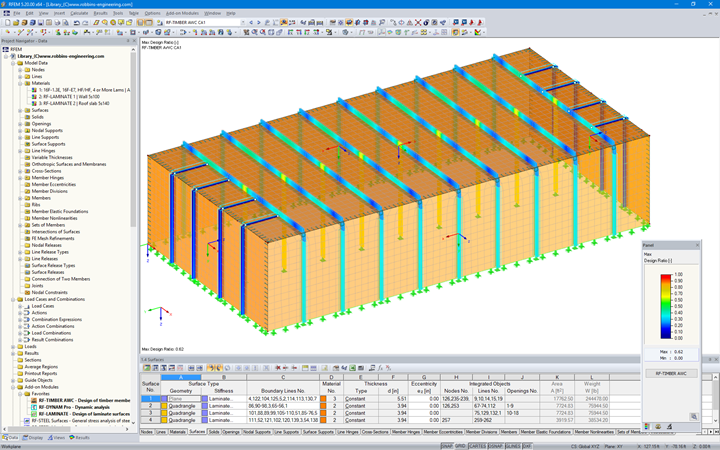

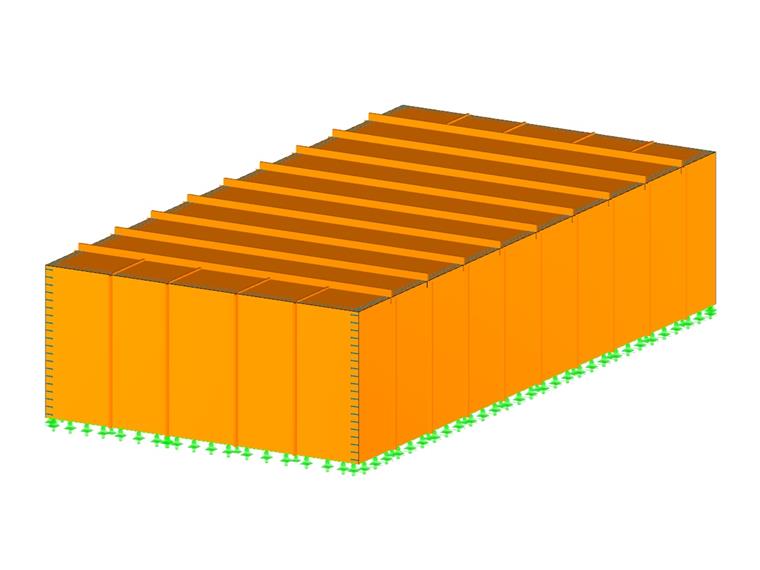

Design was performed utilizing Dlubal software by the fabricators consultant, Holtzpak, and by structural EOR, Robbins Engineering. Utilizing Dlubal software allowed for quick and efficient coordination between the EOR and fabricators consultant regarding structural loading, design assumptions, and element releases.
