Concrete Foundations Add-on for RSTAB 9

Concrete foundation
Reinforcement
Concrete structures

Concrete Foundations Add-on for RSTAB 9

The Concrete Foundations add-on for RSTAB 9 allows you to design reinforced and unreinforced foundation plates, bucket and block foundations. For bucket and block foundations, you can consider smooth or rough bucket sides.

The add-on provides intuitive input, high-quality visualization, Eurocode-compliant calculations, and detailed control options. It allows you to design foundations quickly and efficiently.

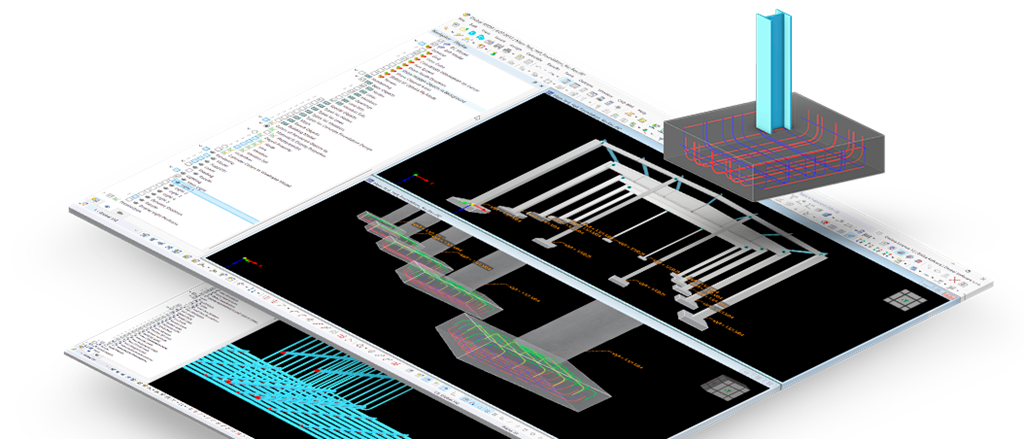

Concrete Foundations Add-on | Slider Image

New Add-on Concrete Foundations for RSTAB 9

We present: Your all-in-one solution for complete foundation design! The powerful Concrete Foundations add-on supports you in the design of reinforced and unreinforced foundation slabs as well as bucket and block foundations. It is fully integrated in RSTAB 9. The add-on automatically transfers the internal forces and moments determined in RSTAB and updates them when changes are made to the global model.

The add-on is designed for efficiency and performs all relevant design checks, such as punching, sliding, and so on.

Whether in building construction, industrial projects, or research, RSTAB 9 and the Concrete Foundations add-on help you streamline your workflows, save time, and achieve precise and reliable results.

Concrete Foundation as Parametric Block

Extend Your Structural Analysis with Foundation Design!

Image of a concrete foundation featuring visible reinforcement detailing for enhanced load distribution.

Unlock the Full Potential of Your Foundation Design!

Design of reinforced and unreinforced foundation plates, as well as bucket and block foundations
Graphical display with rendering
Geotechnical design checks according to Eurocode 7 (ground failure design, design of sliding, equilibrium limit state, uplift limit state, highly eccentric loading, highly eccentric loading in core)
Graphical and tabular output of the required reinforcement amount

Reinforced concrete design according to Eurocode 2 (bending design, punching, minimum reinforcements)
Detailed ultimate and serviceability limit state design checks and structural details
Output of design checks with formulas → no black box, but transparency and traceability!

Discover Key Features

Discover the powerful features of the RSTAB add-on that simplify the analysis and design of foundations and ensure maximum safety and performance.

Foundations for Combined Structures

Whether steel, concrete, timber columns, and so on, the foundation can be defined under all materials. Foundations under columns made of surface components are also possible.
Comprehensive Eurocode Standardization

Ensure that your design checks comply with the Eurocode 2 and 7 standards, with detailed concrete and geotechnical design checks, including punching shear, static equilibrium, and so on.
Customizable Design Settings

Adjust design parameters to meet specific project requirements, providing flexibility and greater control over design results and design checks.
Full Integration in RSTAB 9

Seamless operation within RSTAB 9 eliminates the need for third-party software, reducing errors and saving time. The add-on automatically recognizes the dimensions of the object to be supported.

Detailed steel structure, resting on reinforced concrete foundations, with precise connections.

Illustration of precise reinforced concrete foundations and geotechnical engineering details in accordance with Eurocodes 2 and 7

Image of a concrete hall showcasing robust reinforced concrete foundations in a construction context.

Procedure

Creating the global structure
Creating and assigning a new foundation to a nodal support
Defining input data in the intuitive user interface (RSTAB provides immediate graphical visualization of the topology)
Checking the desired configurations for the design (RSTAB provides common settings as default)
Start the calculation
Evaluate the results graphically, in tables, and in detail
Print result tables, graphics (optionally with reinforcement, multi-print), and verification formulas (with reference to equations in the standard) in the printout report

RSTAB 9 Interface with Model of Reinforced Concrete Frame Structure with Foundations

Your Benefits

A reinforced concrete hall with integrated concrete foundations and detailed structural elements.

1. All-in-One Solution

Works seamlessly within the RFEM 6 environment, so no external programs are required.

Concrete member paired with a reinforced foundation for accurate reinforcement quantity determination

2. Efficient Reinforcement Design

Easily determine the exact amount of reinforcement you need for your foundations.

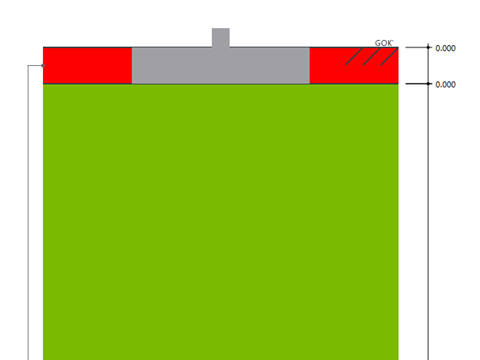

Interface for executing geotechnical proofs following Eurocode 7 via an add-on

3. Integrated Geotechnical Design

Perform the required geotechnical design checks according to Eurocode 7 in the add-on.

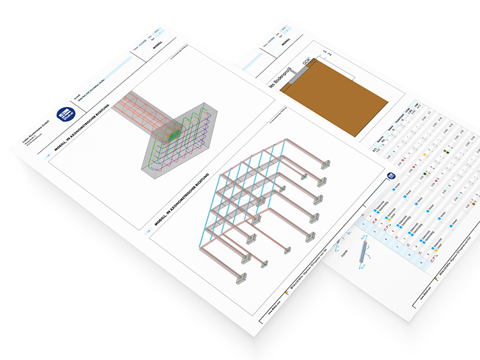

Detailed printout report showing visual and numerical outputs for concrete foundations analysis.

4. Comprehensive and Clear Results

Get detailed, transparent results with clear visual and numerical result display for seamless documentation.
