Customer Project: Open-Air Skating Rink Roof Structure, Pasta Island, Jelgava, Latvia

Video

First Steps with RFEM

First steps

We provide hints and tips to help you get started with the RFEM program.

16 July 2019

000235

Please accept Marketing Cookies to watch this video.

Description

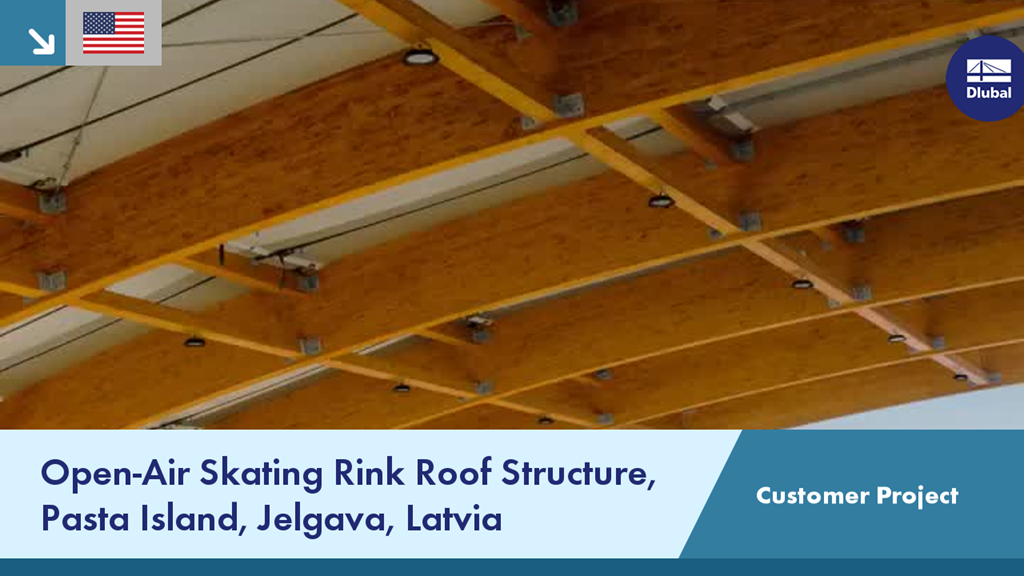

A timber roof structure was recently constructed over an existing open-air ice rink in Jelgava, Latvia. The project located on Pasta Island serves as a multi-functional building for recreational, cultural and social activities.

Because the skating rink was located next to an existing pedestrian bridge and building, the shape and appearance of the roof needed to blend well with the surroundings. For this reason, a curved glued-laminated timber roofing was chosen.

The roof structure includes a partial frame supported on multiple columns. On the lower side of the structure exists a tapered column which is rigidly connected to the curved roof beam. On the higher side, a pinned tapered column supports the structure. The lateral support system includes three spans of circular rod X-bracing.

In 2018, the roof structure received 1st place in the "Timber Building" category at the annual "Building of the Year" awards in Latvia.

Client: City of Jelgava, Latvia | http://bit.ly/2Xzf4eI

Architect: IK Inetas Bukas arhitekta prakse, Latvia

Structural Engineering: Rodentia SIA, Latvia | http://bit.ly/2XzeFJe

Construction: Igate Būve SIA, Latvia | http://bit.ly/2XzeGNi

Manufacturing: IKTK SIA, Latvia | http://bit.ly/2XzeHkk

Photos and model: © by Rodentia SIA

More information: http://bit.ly/2XzeIoo
