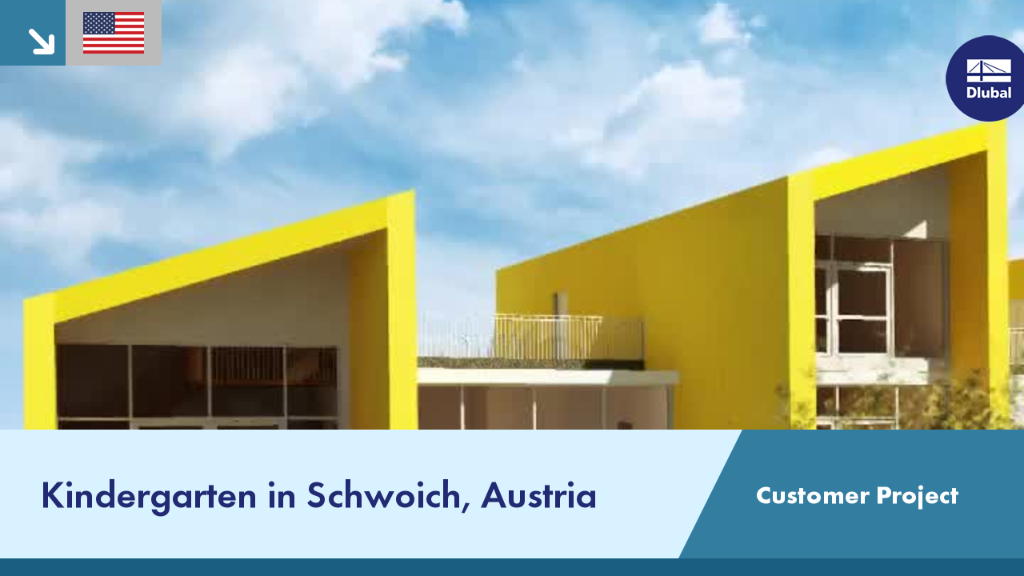

A kindergarten, designed according to Building Information Modeling (BIM), is currently under construction in the Tyrolean municipality of Schwoich. The digital 3D model accompanies the construction project from design until completion.
The architectural planning has been performed with Autodesk Revit. The structural model, including cross-sections, materials, loads, etc., has been exported to RFEM with the direct interface and designed there.
AGA-Bau-Planungs GmbH from Kufstein in Tyrol was mandated to perform the complete design of the project. This planning has been always carried out on the digital model. It starts with the architecture (conceptual design, approval planning and final planning) and ends with the carpentry (CNC data for joining).
The walls and slabs of the first floor are built using reinforced concrete. On this stands a post and beam structure made of timber. The three three-story central buildings with their monopitch roofs are like canines pointing upwards. They are connected by access balconies which are glazed in the lower floors.
The timber structure is stiffened by timber framed walls with OSB plates in longitudinal and transversal direction. The kindergarten has a floor space of 1,400 m² in total.
General Planning:
AGA-Bau-Planungs GmbH | www.agabau.at
Visualisations and model:
© by AGA-Bau
