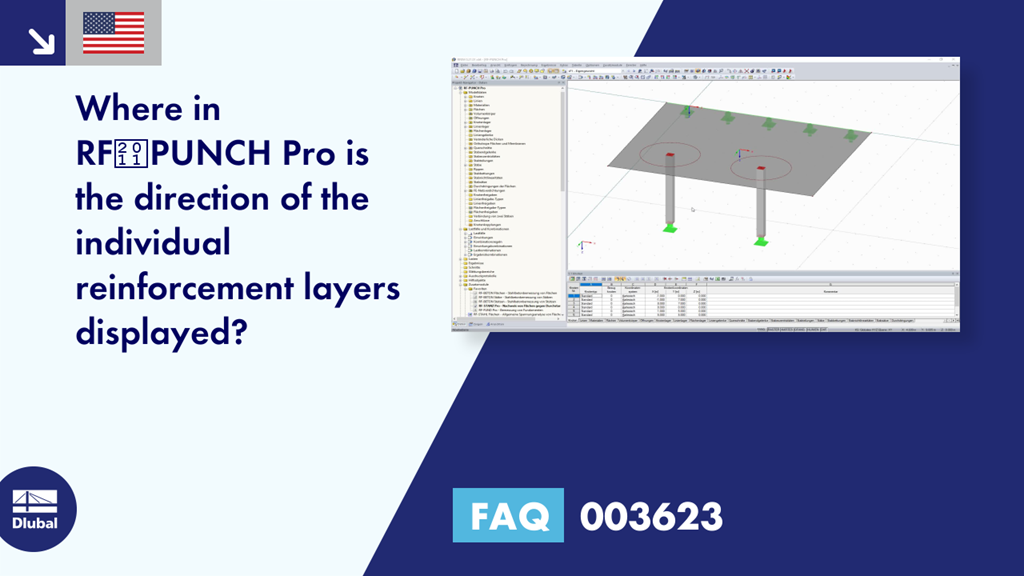

FAQ 003623 | Where in RF‑PUNCH Pro is the direction of the individual reinforcement layers displayed?
Video
First Steps with RFEM
Question
Where in RF‑PUNCH Pro is the direction of the individual reinforcement layers displayed?Answer
The reinforcement directions phi 1 and phi 2 are displayed in Window 1.4 when clicking one of the cells shown in Figure 01.Keywords
