Question:

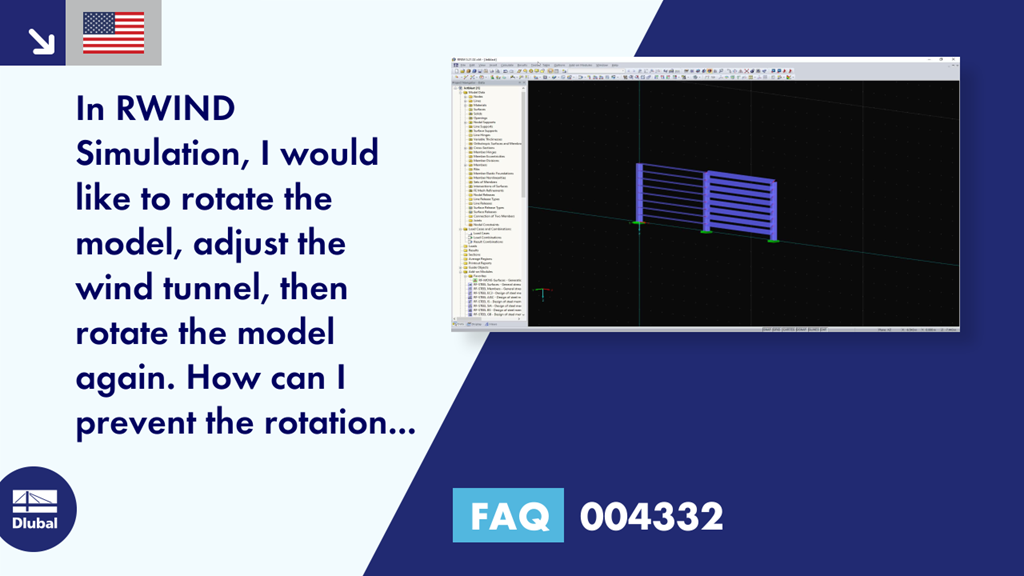

In RWIND Simulation, I would like to rotate the model, adjust the wind tunnel, then rotate the model again. How can I prevent the rotation point of the model from being changed?
Answer:
In RWIND Simulation, you can manually adjust the model position and the model rotation. To do this, simply select Model → Edit in the navigator, then enter the desired rotation angle in the Position tab. In this case, the rotation is carried out without changing the displacement.
