In RWIND Simulation, I want to rotate the model, adjust the wind tunnel, and then rotate the model again. How can I prevent the rotation point of the model from being changed?

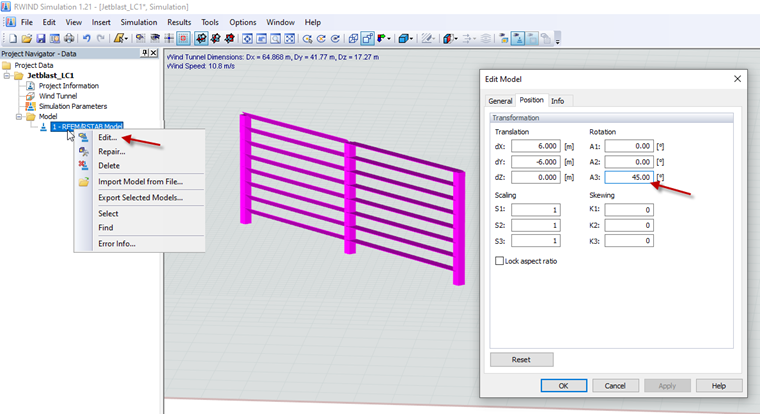

In RWIND Simulation, it is possible to adjust the model position and the model rotation manually. To do this, simply select Model → Edit in the navigator and then the desired rotation angle in the Position tab. In this case, the rotation is carried out without changing a displacement.


Rotate RWIND Position Move
