[EN] FAQ 004495 | Why is a trapezoidal but no triangular load displayed for a surface load with ...

Question:

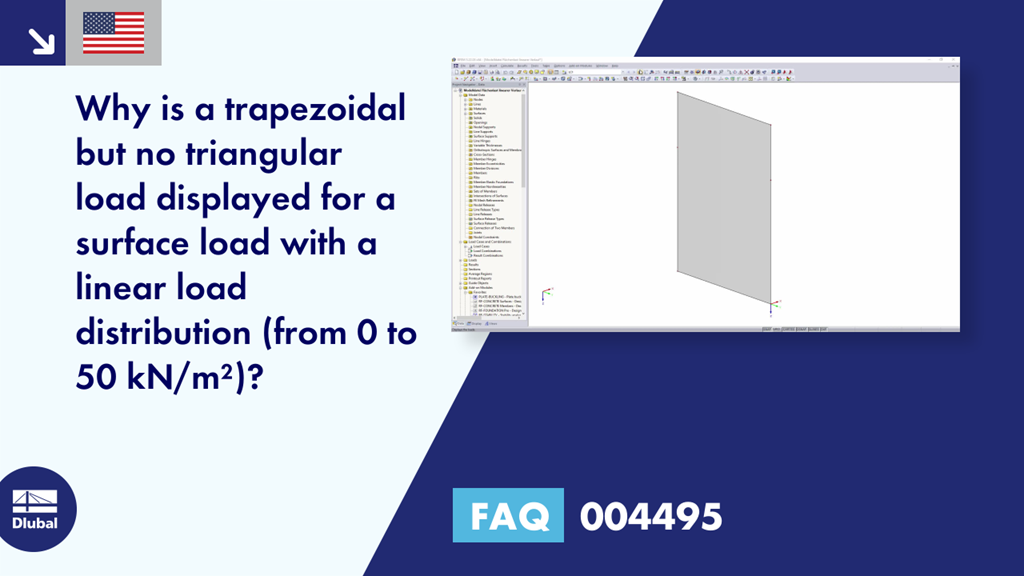

Why is a trapezoidal but no triangular load displayed for a surface load with a linear load distribution (from 0 to 50 kN/m²)?

Answer:
The reason is the relative limit settings that can be defined for each load type in the display settings. In order to display the load in a triangular shape, it is necessary to reduce the minimum value for "1 [kN/m²]". The smallest value that can be set is 0.1%.

The relative limit settings are used to control the minimum and maximum display sizes in relation to the maximum dimensions of the entire model.
