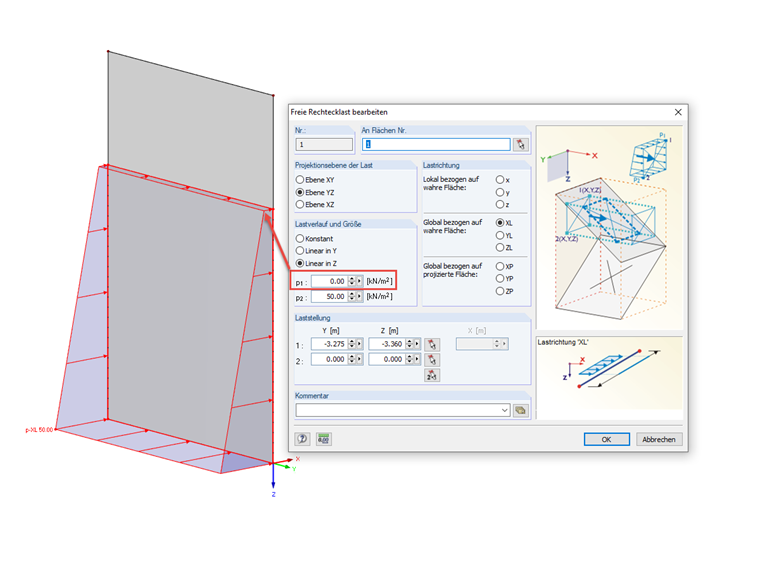

Why is there a trapezoidal and no triangular load displayed for a surface load with a linear load distribution (from 0 to 50 kN/m²)?

Answer

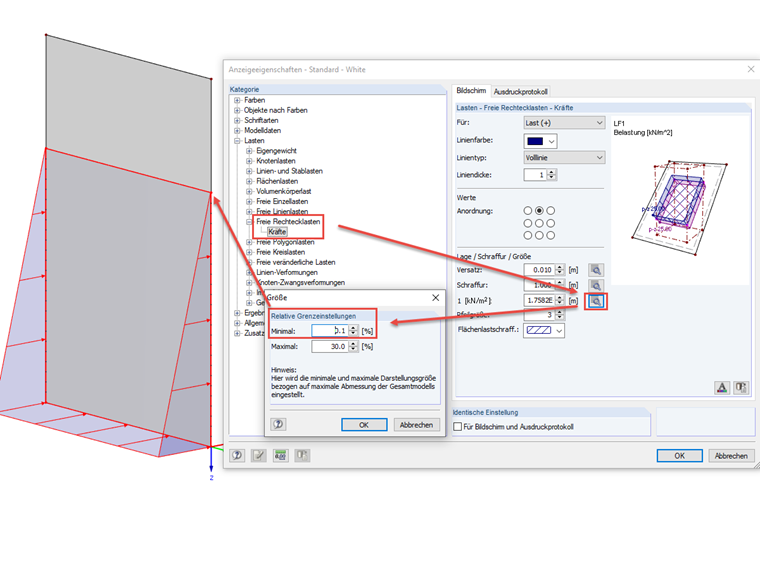

The reason is the relative limit settings that can be defined for each load type in the display settings. In order to display the load in a triangular shape, it is necessary to reduce the minimum value for "1 [kN/m²]." The smallest value that can be set is 0.1%.

The relative limit settings are used to control the minimum and the maximum display size in relation to the maximum dimensions of the entire model.

Keywords

Load distribution Linear load distribution Free load Trapezoidal surface load Display properties Distribution
