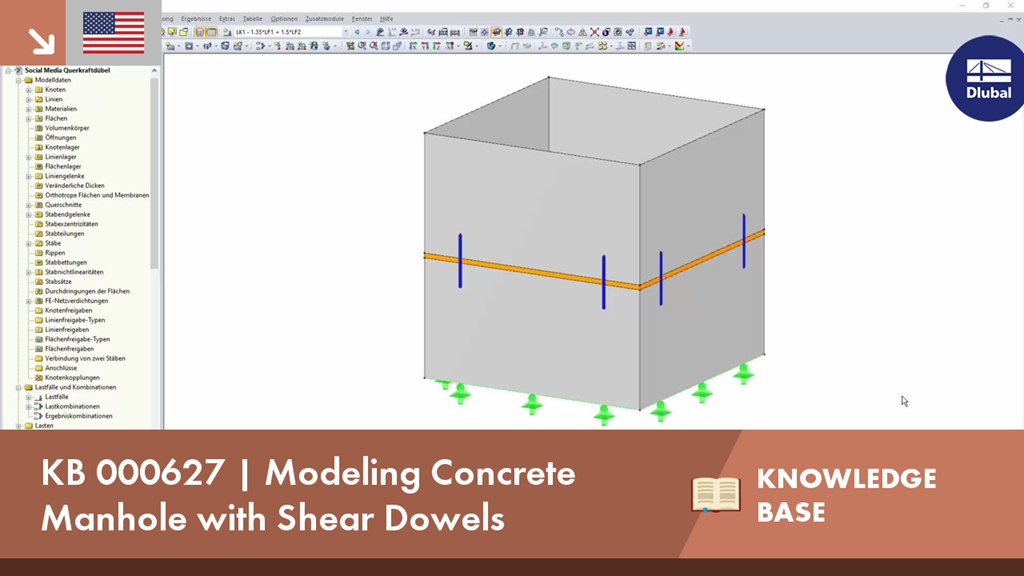

RFEM 5 allows you to use many different member nonlinearities for the design of a model. In the following, we look at an example for the use of the member nonlinearity "slippage." The example is a simplified model of a concrete manhole with a square plan view.
