Which bending theory should be used for the calculation of plates and shells - Kirchhoff or Mindlin?

Answer

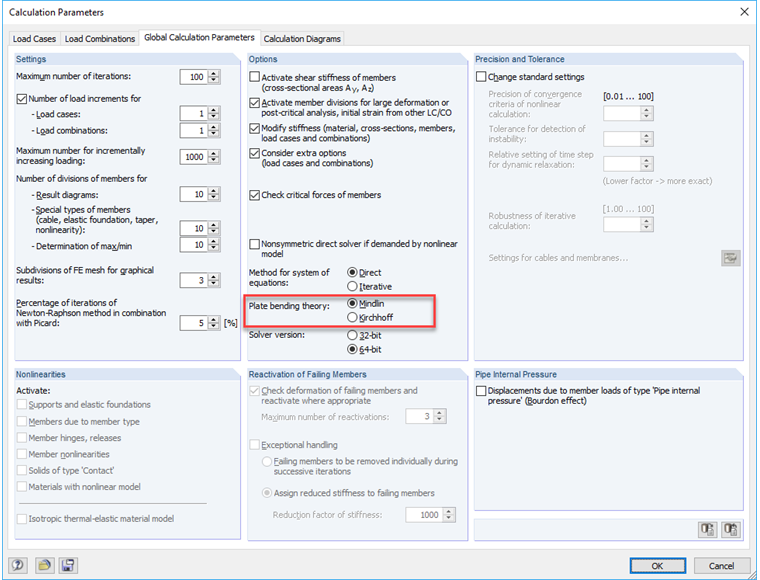

In the "Calculation Parameters" dialog box, you can choose between the two bending theories (see Figure 01).

Figure 01 - Specifying Plate Bending Theory

Shear force deformations are included in the calculation according to Mindlin , but are not considered according to Kirchhoff . This means: For thicker plates and shells, the Mindlin theory leads to good results, for thin elements, the Kirchhoff theory.
