FAQ 000359 EN

Data Management RFEM RSTAB

Is it possible to save files without results so as to keep the amount of data?

Answer

If you don’t want to save the results together with the model, select "File" -> "Save File As." Then clear the selection of the check boxes for the data that you don’t want to save.

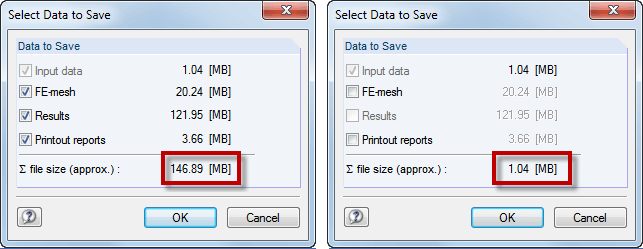

The figure shows how the file size changes depending on your selection.

To delete the results of an open model, select "Results" -> "Available Results." Then select the relevant entry and click [Delete].

Alternatively, you can right-click the results in the Project Navigator an select "Delete All Results."

Also, you can just shift a node in the model and then [Undo] the action, thus deleting all results.

Keywords

file size, disk space, memory capacity
