FAQ 001476 EN

Display Settings RFEM RSTAB

Is it possible to display the results of design modules with a multi-color display? The ratios in my model are displayed only with two colors.

Answer

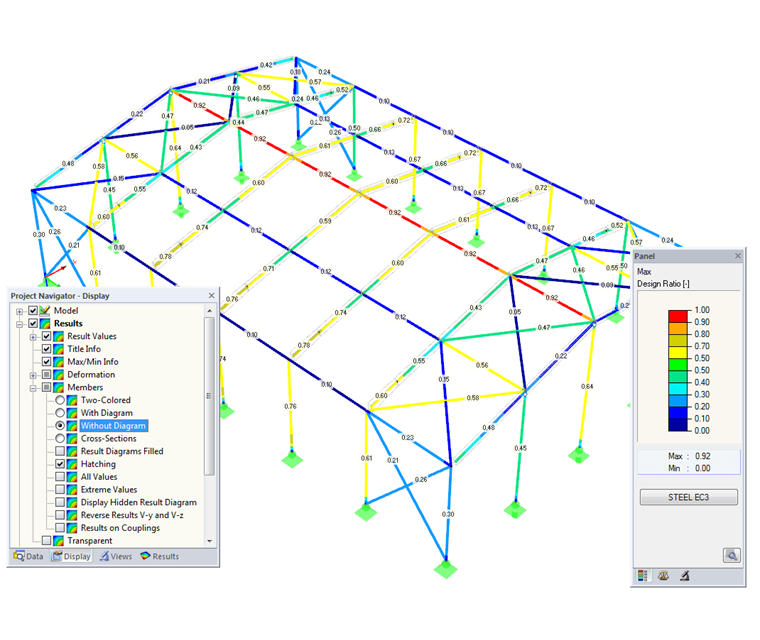

Yes, in the Display navigator you can set the ratios to be displayed two-colored, colored with diagram or without diagram, and on cross-sections (see picture).
