Is it possible to display the resultant for the results of a line release or a line hinge?

Answer

For example, when dimensioning and selecting fasteners between two surfaces, it is helpful to know the resulting forces or moments between the surfaces.

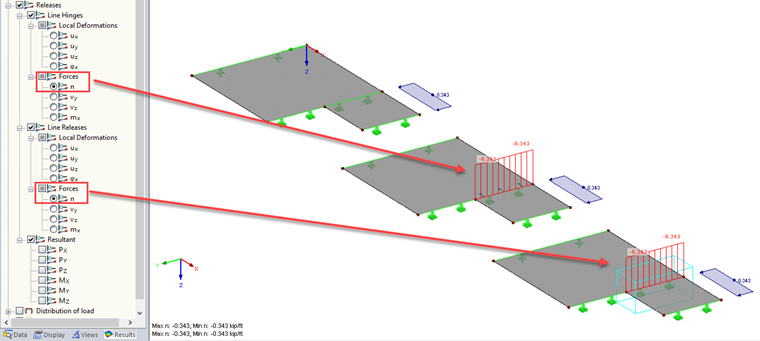

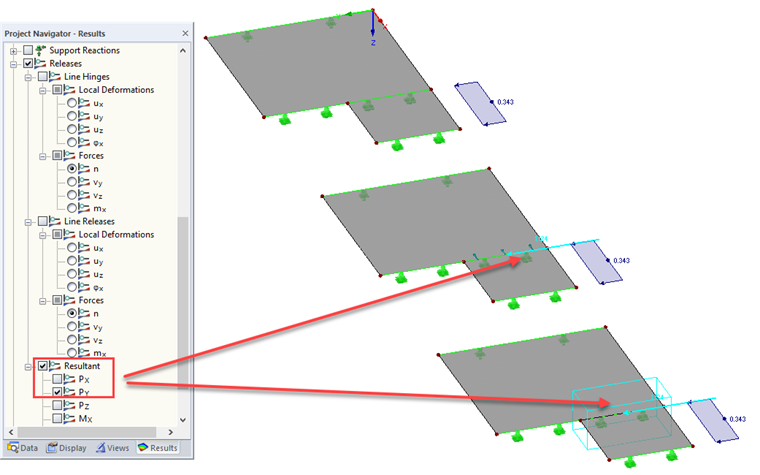

The resultants for the results of line hinges and line releases can be displayed in the Results navigator under the 'Releases' entry. In this case, a distance-related evaluation (see Figure 01) or the consideration of the total value (see Figure 02) is possible.

Keywords

resultant results line hinge results line release line hinge line release
