Not all cross-sections are detected in RFEM/RSTAB after the import. How can I solve the problem?

Answer

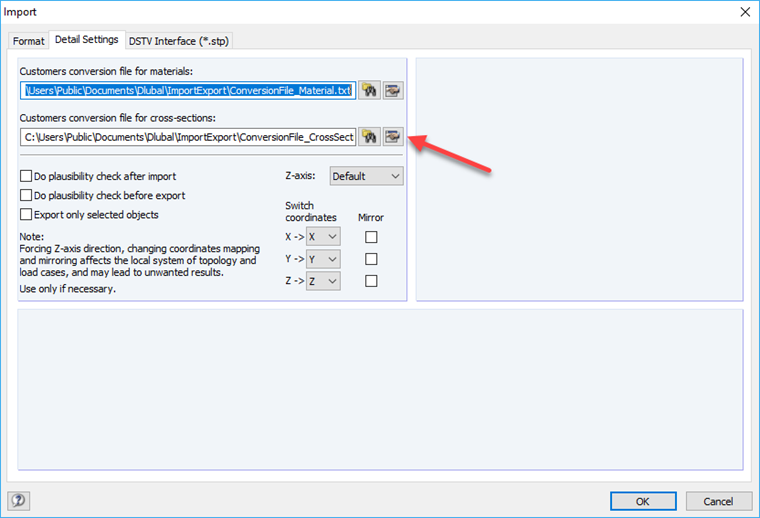

This problem occurs when the imported cross-section description does not exist in RFEM/RSTAB. In such cases, it is possible to create a kind of a 'translation table' in the form of a conversion file. You can find this in the 'Detail Settings' tab of the 'Import' dialog box (see the figure).

The program then converts all entered cross-sections during the import so they are recognized by RFEM/RSTAB.

A similar conversion table is also available for materials.

Keywords

conversion file import cross-section import material translation table importing cross-section
