FAQ 002621 EN

26 June 2019

Sonja von Bloh Import / Export & BIM RFEM RSTAB

I would like to export nodal support forces of several load cases, load combinations and result combinations into an Excel spreadsheet. How should I proceed?

Answer

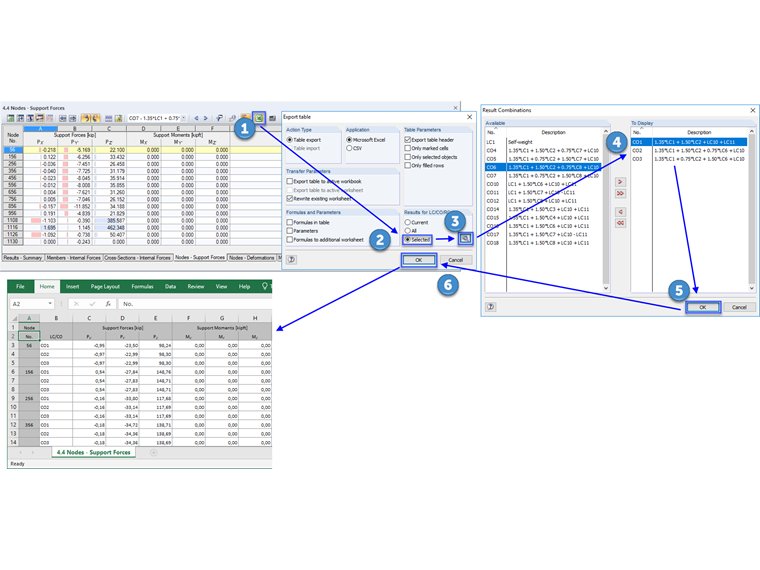

You can export the nodal support forces in Table 4.1 'Nodes - Support Forces' (RFEM) or 4.4 'Nodes - Support Forces' (RSTAB) by using the [Export/Import Table] button. Under 'Results for LC/CO/RC', you can select whether to export the currently set load case or combination, all or only specific load cases, load combinations and result combinations.

Keywords

Support force Support reaction Export Excel Table
