How can I rotate the isometric view onto my entered structure?

Answer

There are several options.

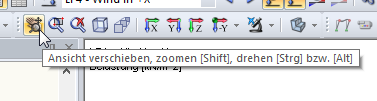

1. You can activate the command "Move view, Zoom [Shift], Rotate [Ctrl] or [Alt]". See Figure 1.
When the command has been activated, you can hold down the left mouse button and click [Shift], [Ctrl] or [Alt] to change the view.

2. You can also use the [Ctrl] and the middle mouse button (mouse wheel) to rotate the mouse. We change the view when we move the mouse pointer.

3. As an alternative to the [Ctrl] key in 2., you can also hold down the right + middle mouse button and move it.
