For my structural model, I want to print some images into the printout report.
Do I necessarily have to print the corresponding tables in the report? I just want to store only the images.

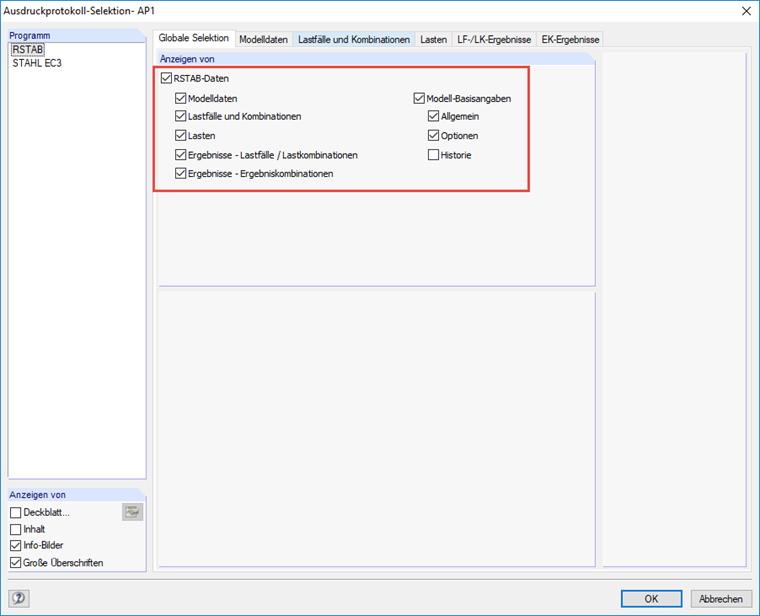

If you want to print graphics in a report, the corresponding subitem must be active in the selection of the printout report in the "Global Selection" tab, see Figure 1. As a result, the tables are also displayed.

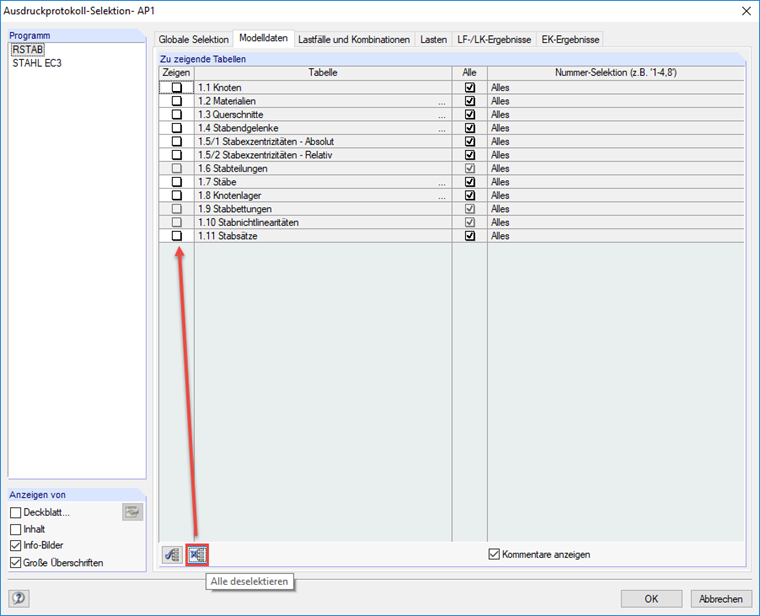

If you only want to print pictures in the printout report, it is necessary to deactivate the tables in the tabs, see Figure 2.

Afterwards, it is also possible to save report templates so that they can be used again in other positions. New templates can be defined in the printout report menu:

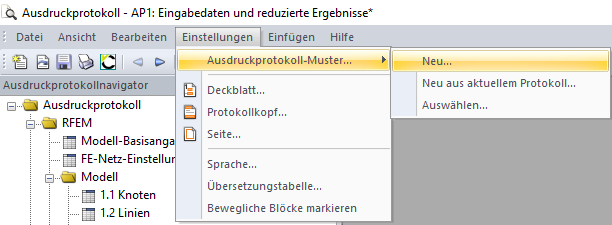

Settings → Printout Report Template → New or New from Current Printout Report, Figure 3.


printout report printout report template templates global selection tables graphics images
