I just have to calculate an open hall with low roof loads and relatively high wind loads. For this one would theoretically have to prove the lower flange to buckling / tilting. Unfortunately, the combination is missing 1.0 * G +1.5 * W.

Answer

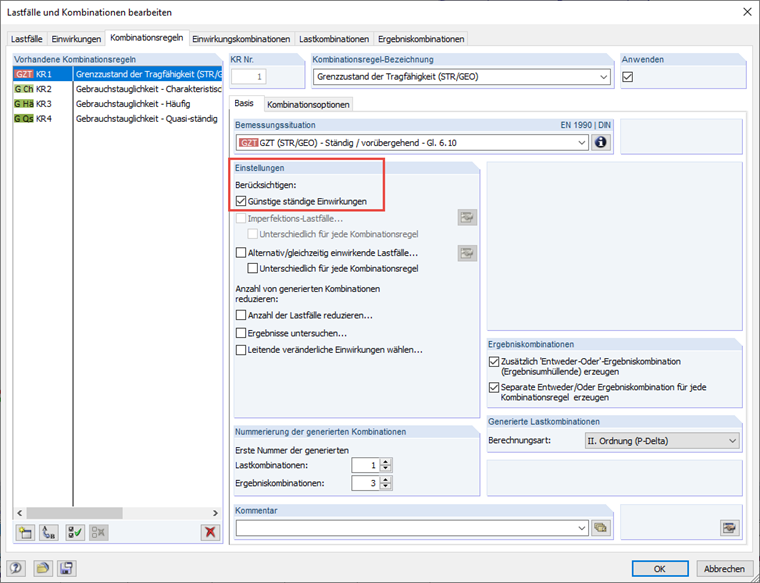

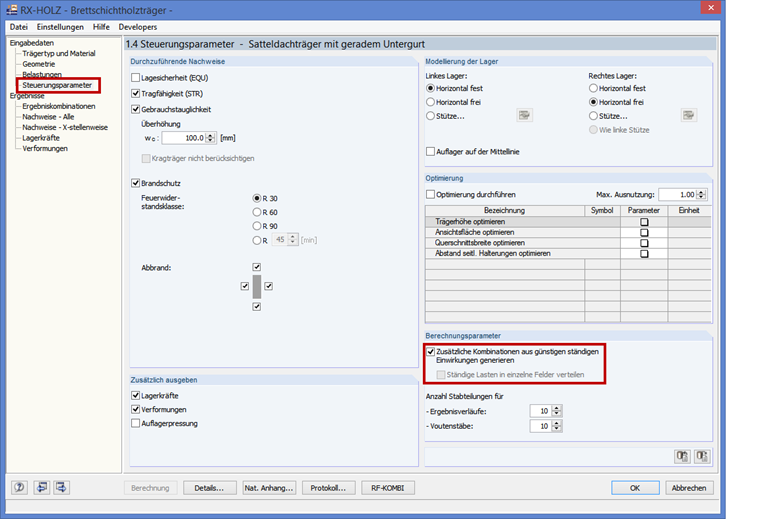

Additional combinations of favorable permanent effects can be taken into account in RSTAB / RFEM using the mask Combination rules (see Fig. 1) and in RX-TIMBER via Form 1.4 (see Fig. 2).

Keywords

Favorable permanent effects Effect cheap
