FAQ 002783 EN

3 April 2019

Daniel Dlubal Modeling | Loading RFEM RSTAB

Why do I get duplicate values for the load generation "Convert of Area Loads to Member Loads"?

Answer

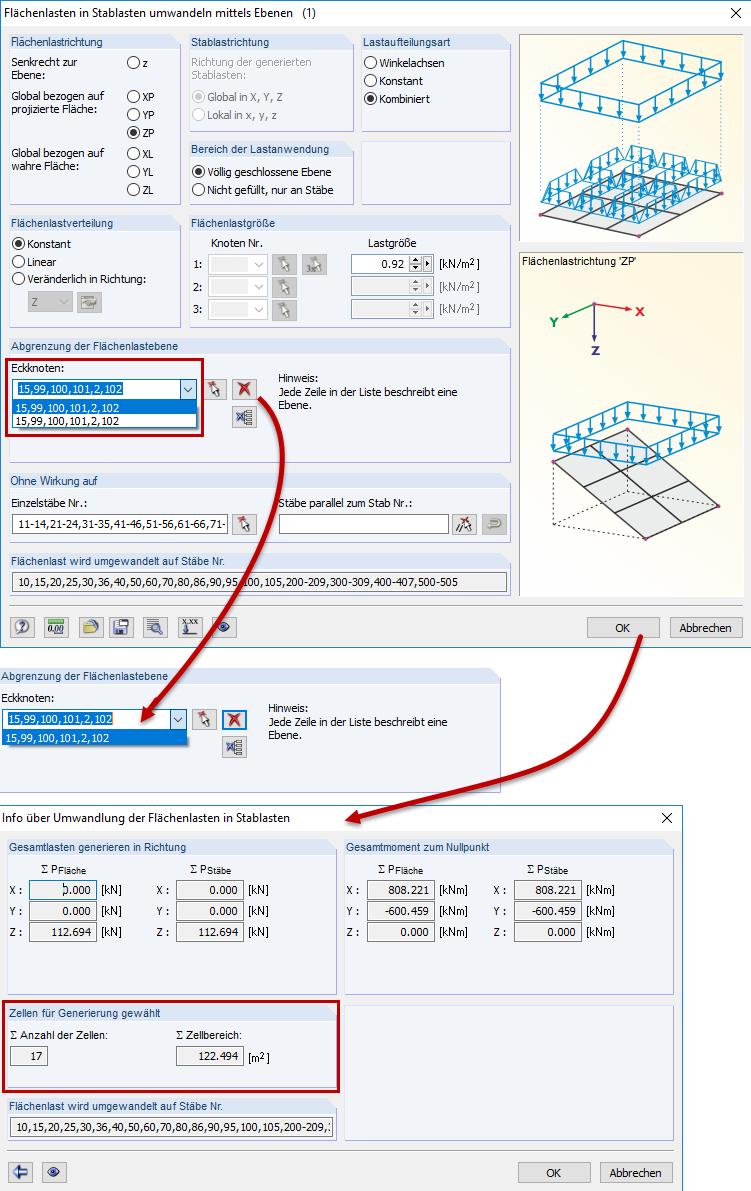

This is due to the fact that the respective corner nodes for defining the area load plane are duplicated in the selection window. If one of them is deleted, the correct values are displayed in the info window after clicking OK.

Keywords

Load generation Conversion of the area loads into member loads Generate load Double values Double load area Generated load
