FAQ 002785 EN 4 April 2019

Markus Baumgärtel Add-on Modules RFEM RSTAB RF-STEEL STEEL

With RSTAB / RFEM I use cross-sections whose values I specify via direct input. How do I get the steel module to consider my cross sections?

Answer

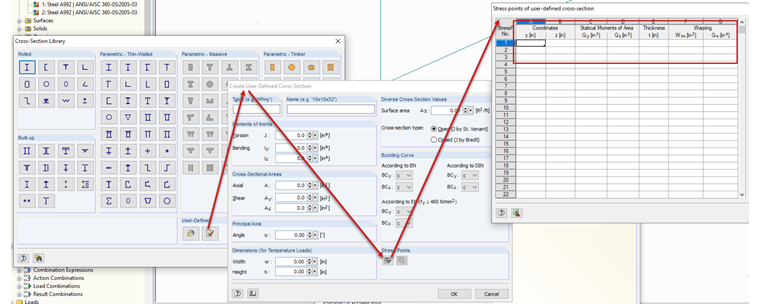

You have to create a custom cross section (see picture). Afterwards the stress points with all necessary values have to be indicated. After successful entry, stresses in the additional module STAHL be calculated.

Keywords

Custom cross section User defined stress points
