Question

I would like to obtain the reinforcement results (As,-z(top), As,+z(bottom), asw,V,stirrup) for a beam from my RFEM or RSTAB file and import them into AutoCAD. Using the "Export" → "DXF" dialog box, I can only read out the geometry. Is there any option for this?


Answer:

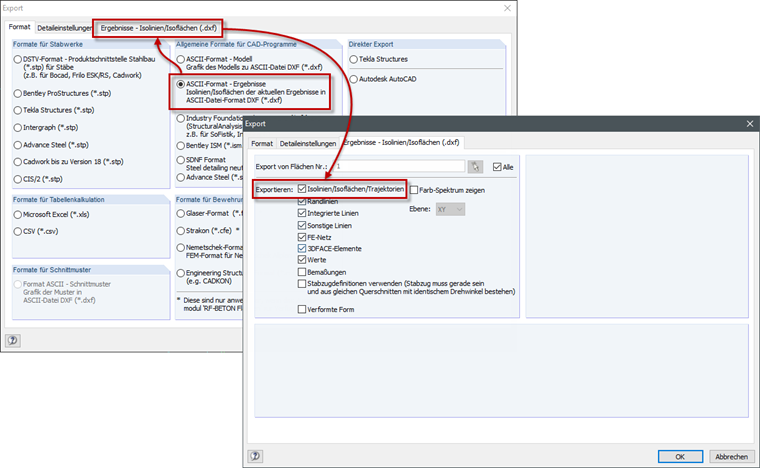

Unfortunately, there is currently no option to export the reinforcement from RF‑/CONCRETE Members to the CAD format. In RFEM, however, you can export the design results from RF‑CONCRETE Surfaces into a DXF file.
