In my model, arrows for the support forces are no longer displayed. What can be the reason for this?

Answer

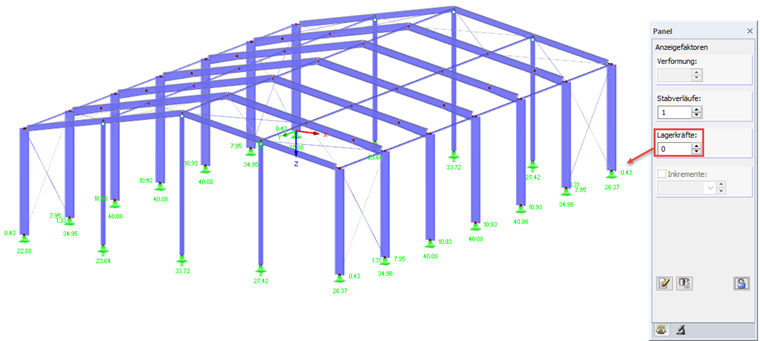

In this case, it is recommended to check the result panel first. Sometimes the display factor for the support forces is "0". As soon as it is increased, the arrows should be redisplayed.
