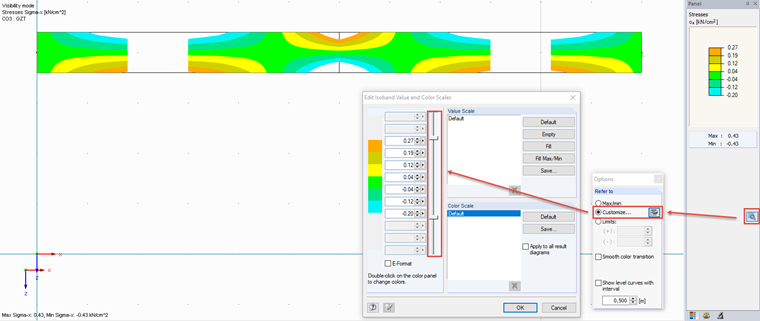

Yes, you can define an area in the panel by clicking the "Options" button. Here you can define a customized area by moving the slider. In that case, the areas with higher or lower stresses have no color.
Question
Is there a possibility to show results only for a customized area?
