Is it possible to do a calculation in RF-CONCRETE Members or RF-CONCRETE Columns with user-defined material (yield strength)?

Answer

Yes, it is.

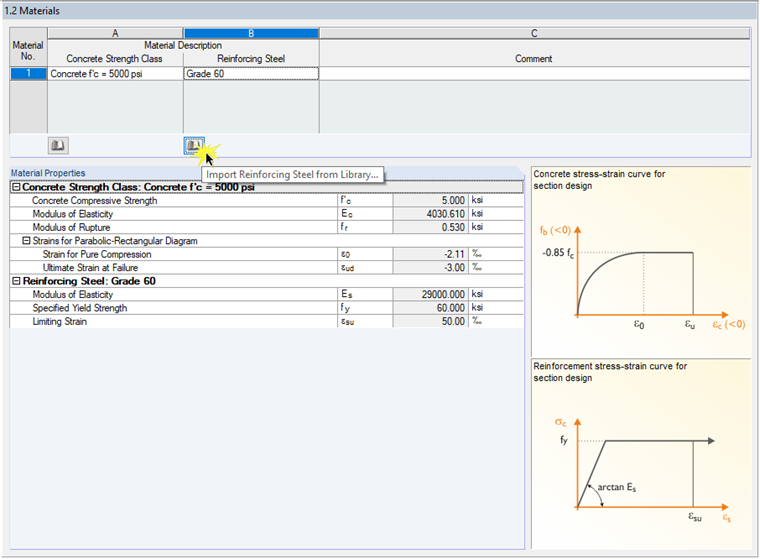

Open the table "1.2 Materials" and the material library for the reinforcing steel. See figure 01.

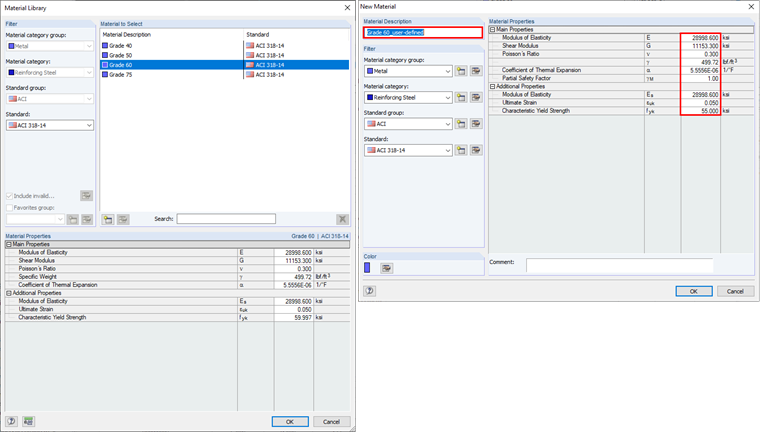

In this material library you can create a new "user-defined" material and edit the standard presets for example for the yield strength. See figure 02.

Afterwards you can select this user-defined material for design in table 1.2 in RF-CONCRETE Members and RF-CONCRETE Columns.

It is the same for the RSTAB-modules CONCRETE and CONCRETE Columns.

Keywords

User-Definded Material Material Reinforcing Steel Yield Strength Concrete Strength Class Material Library
