Is it possible to calculate stiffening systems with Dlubal Software?

Answer

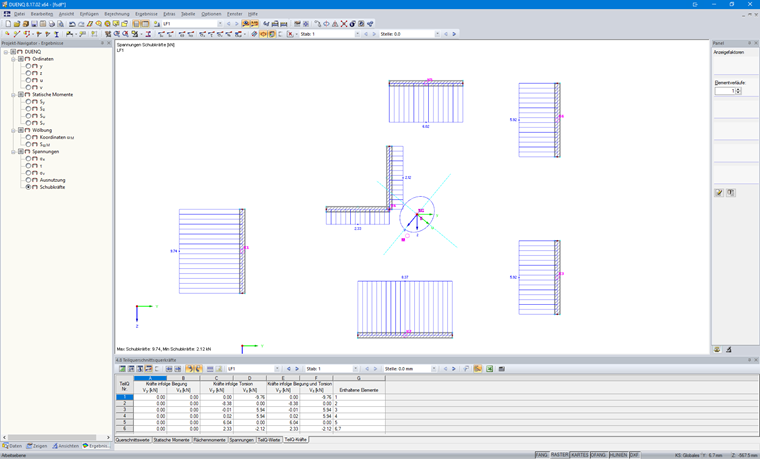

You can perform preliminary dimensioning of stiffening systems by using the SHAPE‑THIN program. Thus, the individual wall sections can be modelled and calculated with the theory of stiffening systems. As a result, you obtain the information on the centroid, shear centre, and the details about the cross-section properties of the individual sections. Furthermore, it is possible to determine the individual shear forces in walls. Further information can be found under Links below.

Keywords

Stiffening system Stiffening Theory of stiffening systems
