How can I delete load combinations or result combinations?

Answer

It is between manually generated and automatically generated data Power combinations or result combinations must be differentiated.
Load combinations or result combinations that are manually created are shown in black in the table or in the "Edit Load Cases and Combinations" window and automatically generated load combinations or result combinations displayed in blue.

You can manually delete manually created load combinations or result combinations by using the Project Navigator - Data, table or the "Edit load cases and combinations" window.
First, select the load or result combinations to be deleted and then select the "Delete" command (see Figure 1).

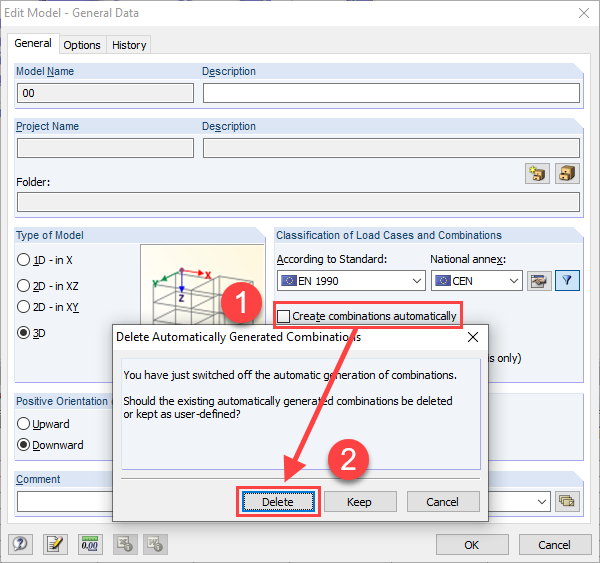

Automatically generated load or result combinations can be deleted by using the "Edit model - General Data" window. First, clear the Automatically generate combinations check box. Then, click the "Delete" button in the opening "Automatically Generate Combinations" window (see Figure 2)

Keywords

Combinatorics Load combination Result Combination
