FAQ 003027 EN

2 May 2019

Frank Faulstich General RFEM RSTAB

Is it possible to integrate own programs into the program interface of RFEM?

Answer

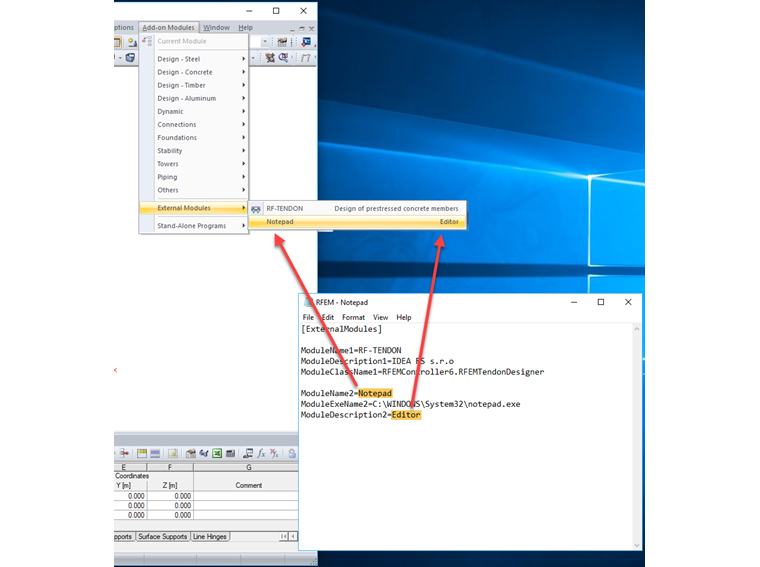

You, can add your own programs to the menu "Add-on Modules → External Modules."

For this, open the file "C:\Program Files\Dlubal\RFEM 5.XX\RFEM.ini" with a text editor. It is necessary to run the text editor with the administrator rights.

The following three lines show exemplary how the Windows text editor Notepad can be inserted in the menu:

ModuleName2=Notepad
ModuleExeName2=C:\WINDOWS\System32\notepad.exe
ModuleDescription2=Editor

Keywords

Own programs
