Is it possible to display the SHAPE‑THIN printout reports with a cross-section graphic and cross-section properties, and include it in the RFEM or RSTAB report?

Answer

It is not possible to transfer printout reports from one program to another. However, there is the option to include the SHAPE‑THIN cross-section properties and the SHAPE‑THIN cross-section graphic in the RFEM or RSTAB printout report.

Open Printout Report Selection and add the cross-section details of the SHAPE‑THIN cross-section.

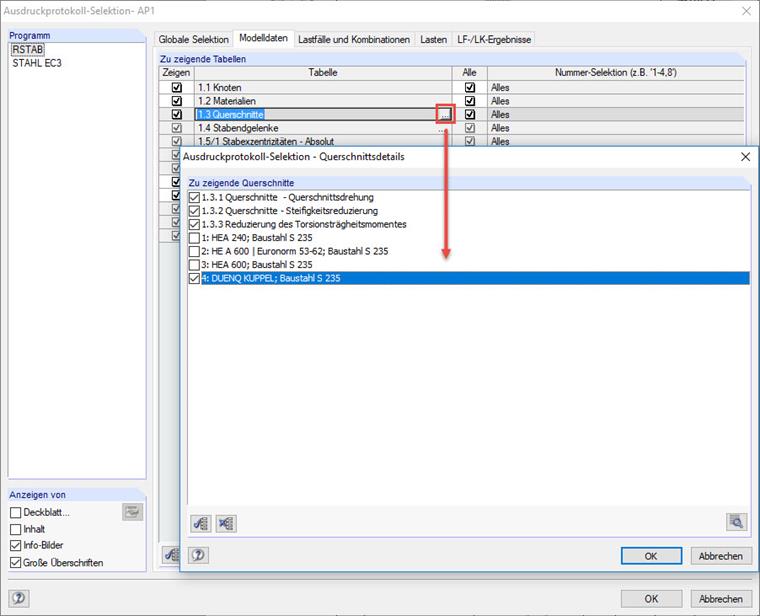

Figure 01 - Printout Report Selection

The printout report is then generated with the graphic and the parameters of the SHAPE‑THIN cross-section.

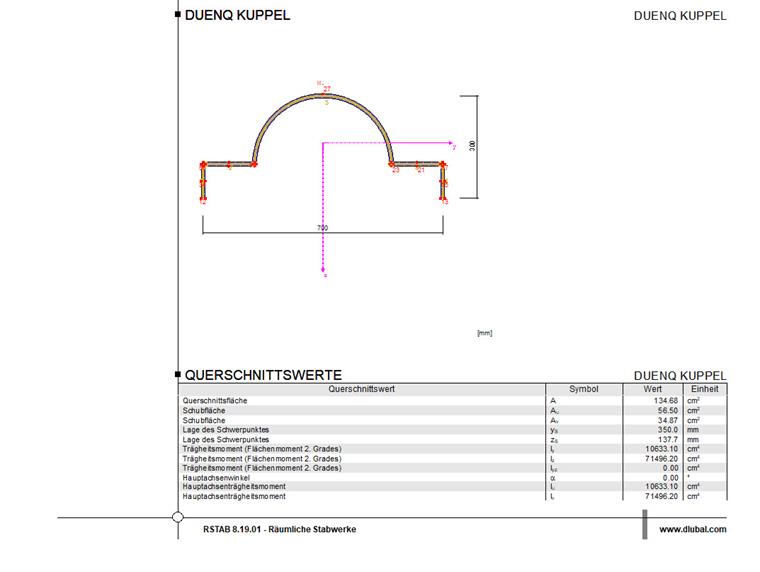

Figure 02 - Inserted SHAPE-THIN Cross-Section Properties
