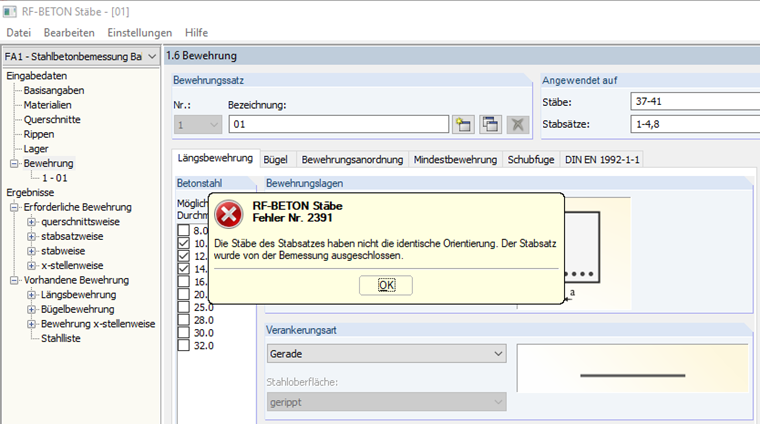

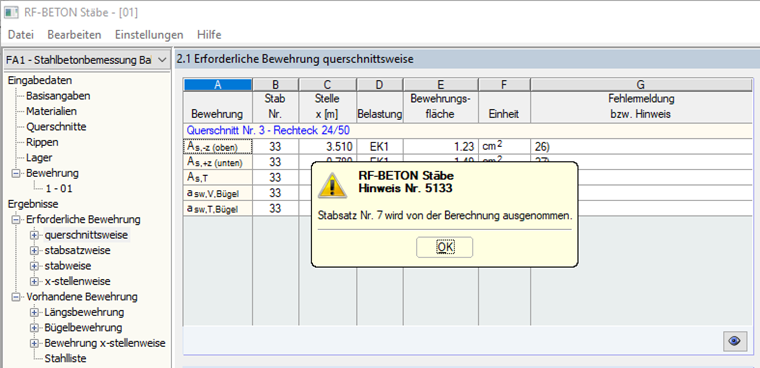

In RF‑CONCRETE Members, I get an error message saying that the members of a set of members do not have the identical orientation and the set of members will be removed from the calculation. What should I do?

Answer

The individual members of a set of members must have the identical orientation. Furthermore, the orientation of the members and the set of members must correspond to each other.

Solution:

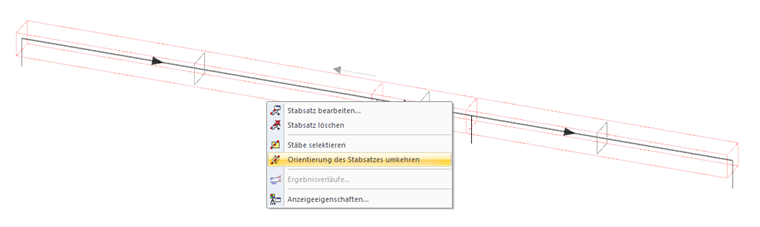

In the Display navigator, you can display and check the orientation of members and sets of members. Use the shortcut menu to reverse the orientation of the member or set of members (see Figure 03).

Keywords

Set of members Orientation 2391 5133
