Answer:

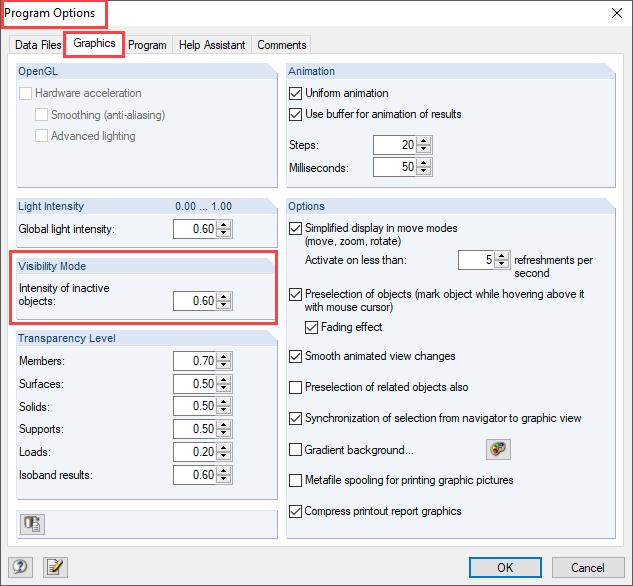

The display or the intensity of the inactive objects can be set under Options → Program Options → Graphics, as shown in Image 01.
Question

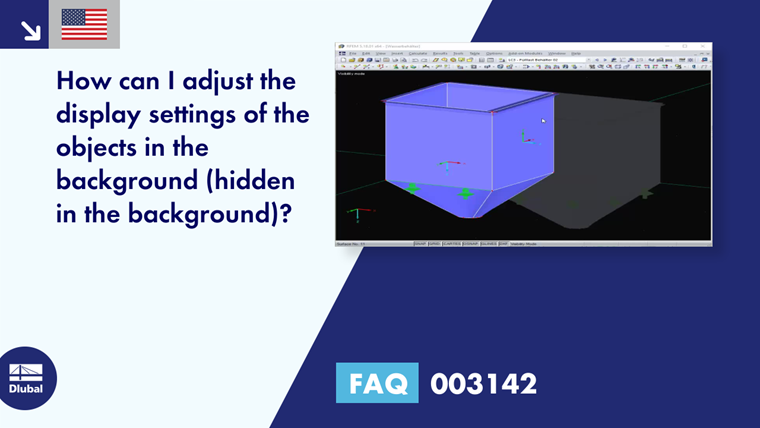

How can I adjust the display settings of the objects in the background (hidden in the background)?
