When entering an imposed support deformation, I receive an error message telling me that the support has not been defined. What does it mean?

Answer

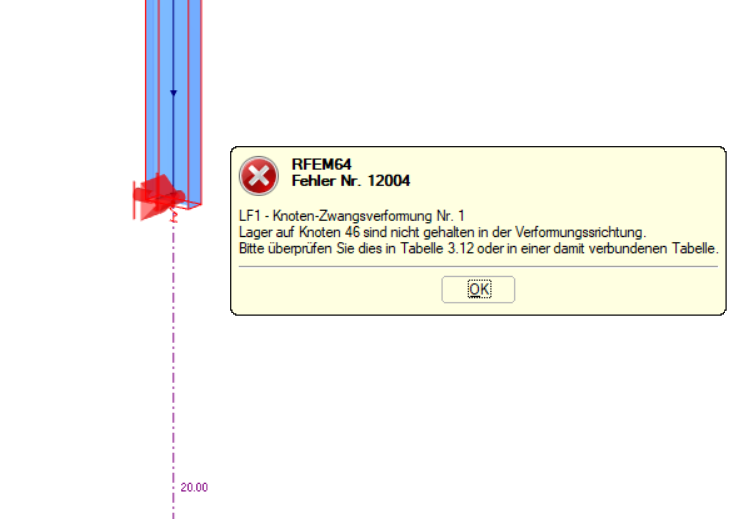

If a support is loaded with the load type Imposed Nodal Deformation or Imposed Line Displacement, then this support must be stored in the direction of the displacement. Stringy support is not sufficient at this location either, an error message is displayed (see Figure 1 and Figure 2).

Keywords

Error 12004 Imposed deformation Settlement of column
