Answer:

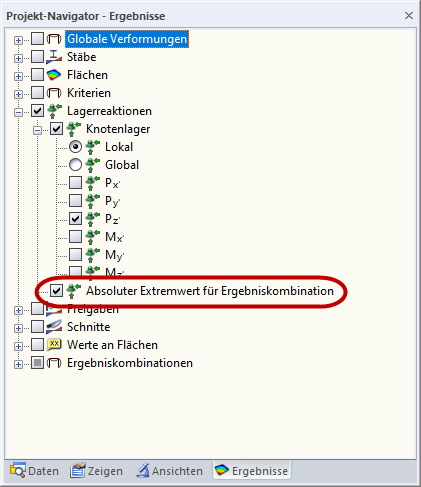

You have probably selected the "Absolute Extreme Value for Result Combinations" option in the Results navigator. Therefore, only the absolute highest value of both is displayed.
