Is it possible to transfer a user-defined value spectrum to all load cases or load combinations?

Answer

The automatic transfer to all load cases or load combinations is unfortunately not possible. However, you can save the customized settings and import them in other load cases.

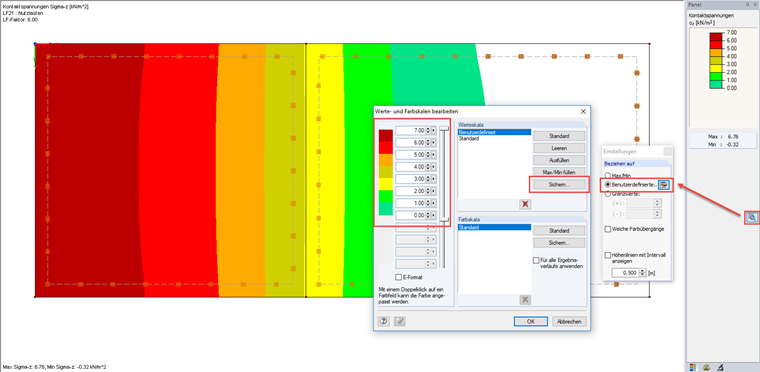

To do this, it is necessary to open the dialog box for editing the isoband value and color scales and specify the user-defined settings. Then, click "Save..." to save these settings.

This isoband value scale is now available in all load cases and combinations and can be selected.
