Answer:

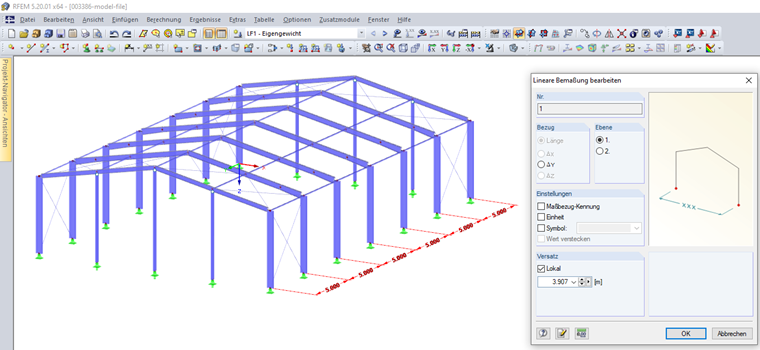

Dimensions cannot be added or deleted in the existing chain dimensioning. The relevant chain dimensioning must be deleted and rebuilt. It is only possible to edit the settings shown in Image 01, such as an offset and so on.
Question
Is it possible to add or delete the (intermediate) dimensions retroactively for the already created chain dimensioning?
